What is your issue?

@keewis pointed out that it's weird that xarray.apply_ufunc supports passing numpy/dask arrays directly, and I'm inclined to agree. I don't understand why we do, and think we should consider removing that feature.

Two arguments in favour of removing it:

1) It exposes users to transposition errors

Consider this example:

```python In [1]: import xarray as xr

In [2]: import numpy as np

In [3]: arr = np.arange(12).reshape(3, 4)

In [4]: def mean(obj, dim): ...: # note: apply always moves core dimensions to the end ...: return xr.apply_ufunc( ...: np.mean, obj, input_core_dims=[[dim]], kwargs={"axis": -1} ...: ) ...:

In [5]: mean(arr, dim='time') Out[5]: array([1.5, 5.5, 9.5])

In [6]: mean(arr.T, dim='time') Out[6]: array([4., 5., 6., 7.]) ```

Transposing the input leads to a different result, with the value of the dim kwarg effectively ignored. This kind of error is what xarray code is supposed to prevent by design.

2) There is an alternative input pattern that doesn't require accepting bare arrays

Instead, any numpy/dask array can just be wrapped up into an xarray Variable/NamedArray before passing it to apply_ufunc.

```python In [7]: from xarray.core.variable import Variable

In [8]: var = Variable(data=arr, dims=['time', 'space'])

In [9]: mean(var, dim='time') Out[9]: <xarray.Variable (space: 4)> Size: 32B array([4., 5., 6., 7.])

In [10]: mean(var.T, dim='time') Out[10]: <xarray.Variable (space: 4)> Size: 32B array([4., 5., 6., 7.]) ```

This now guards against the transposition error, and puts the onus on the user to be clear about which axes of their array correspond to which dimension.

With Variable/NamedArray as public API, this latter pattern can handle every case that passing bare arrays in could.

I suggest we deprecate accepting bare arrays in favour of having users wrap them in Variable/NamedArray/DataArray objects instead.

(Note 1: We also accept raw scalars, but this doesn't expose anyone to transposition errors.)

(Note 2: In a quick scan of the apply_ufunc docstring, the docs on it in computation.rst, and the extensive guide that @dcherian wrote in the xarray tutorial repository, I can't see any examples that actually pass bare arrays to apply_ufunc.)

What is your issue?

The implementation of open_datatree works, but is inefficient, because it calls open_dataset once for every group in the file. We should refactor this to improve the performance, which would fix issues like https://github.com/xarray-contrib/datatree/issues/330.

We discussed this in the datatree meeting, and my understanding is that concretely we need to:

• [ ] Create an asv benchmark for open_datatree, probably involving first writing then benchmarking the opening of a special netCDF file that has no data but lots of groups.
• [ ] Refactor the NetCDFDatastore class to only create one CachingFileManager object per file, not one per group, see https://github.com/pydata/xarray/blob/748bb3a328a65416022ec44ced8d461f143081b5/xarray/backends/netCDF4_.py#L406.
• [ ] Refactor NetCDF4BackendEntrypoint.open_datatree to use an implementation that goes through NetCDFDatastore without calling the top-level xr.open_dataset again.
• [ ] Check the performance of calling xr.open_datatree on a netCDF file has actually improved.

It would be great to get this done soon as part of the datatree integration project. @kmuehlbauer I know you were interested - are you willing / do you have time to take this task on?

What is your issue?

Master issue to track progress of merging xarray-datatree into xarray main. Would close https://github.com/pydata/xarray/issues/4118 (and many similar issues), as well as one of the goals of our development roadmap.

Also see the project board for DataTree integration.

On calls in the last few dev meetings, we decided to forget about a temporary cross-repo from xarray import datatree (so this issue supercedes #7418), and just begin merging datatree into xarray main directly.

Weekly meeting

See https://github.com/pydata/xarray/issues/8747

Task list:

To happen in order:

• [x] open_datatree in xarray. This doesn't need to be performant initially, and ~~it would initially return a datatree.DataTree object.~~ EDIT: We decided it should return an xarray.DataTree object, or even xarray.core.datatree.DataTree object. So we can start by just copying the basic version in datatree/io.py right now which just calls open_dataset many times. #8697
• [x] Triage and fix issues: figure out which of the issues on xarray-contrib/datatree need to be fixed before the merge (if any).

• [ ] Merge in code for DataTree class. I suggest we do this by making one PR for each module, and ideally discussing and merging each before opening a PR for the next module. (Open to other workflow suggestions though.) The main aim here being lowering the bus factor on the code, confirming high-level design decisions, and improving details of the implementation as it goes in.

  Suggested order of modules to merge: - [x] datatree/treenode.py - defines the tree structure, without any dimensions/data attached, #8757 - [x] datatree/datatree.py - adds data to the tree structure, #8789 - [x] datatree/iterators.py - iterates over a single tree in various ways, currently copied from anytree, #8879 - [x] datatree/mapping.py - implements map_over_subtree by iterating over N trees at once https://github.com/pydata/xarray/pull/8948, - [ ] datatree/ops.py - uses map_over_subtree to map methods like .mean over whole trees (https://github.com/pydata/xarray/pull/8976), - [x] datatree/formatting_html.py - HTML repr, works but could do with some optimization https://github.com/pydata/xarray/pull/8930, - [x] datatree/{extensions/common}.py - miscellaneous other features e.g. attribute-like access (#8967).

• [ ] Expose datatree API publicly. Actually expose open_datatree and DataTree in xarray's public API as top-level imports. The full list of things to expose is:

• [ ] open_datatree
• [ ] DataTree
• [ ] map_over_subtree
• [ ] assert_isomorphic

• [ ] register_datatree_accessor

• [ ] Refactor class inheritance - Dataset/DataArray share some mixin classes (e.g. DataWithCoords), and we could probably refactor DataTree to use these too. This is low-priority but would reduce code duplication.

Can happen basically at any time or maybe in parallel with other efforts:

• [ ] Generalize backends to support groups. Once a basic version of xr.open_datatree exists, we can start refactoring xarray's backend classes to support a general Backend.open_datatree method for any backend that can open multiple groups. Then we can make sure this is more performant than the naive implementation, i.e. only opening the file once. See also #8994.
• [ ] Support backends other than netCDF and Zarr. - e.g. grib, see https://github.com/pydata/xarray/pull/7437,
• [ ] Support dask properly - Issue https://github.com/xarray-contrib/datatree/pull/97 and the (stale) PR https://github.com/xarray-contrib/datatree/pull/196 are about dask parallelization over separate nodes in the tree.
• [ ] Add other new high-level API methods - Things like .reorder_nodes and ideas we've only discussed like https://github.com/xarray-contrib/datatree/issues/79 and https://github.com/xarray-contrib/datatree/issues/254 (cc @dcherian who has had useful ideas here)
• [ ] Copy xarray-contrib/datatree issues over to xarray's main repository. I think this is quite important and worth doing as a record of why decisions were made. (@jhamman and @TomNicholas)
• [ ] Copy over any recent bug fixes from original datatree repository
• [x] Look into merging commit history of xarray-contrib/datatree. I think this would be cool but is less important than keeping the issues. (@jhamman suggested we could do this using some git wizardry that I hadn't heard of before)
• [ ] xarray.tutorial.open_datatree - I've been meaning to make a tutorial datatree object for ages. There's an issue about it, but actually now I think something close to the CMIP6 ensemble data that @jbusecke and I used in our pangeo blog post would already be pretty good. Once we have this it becomes much easier to write docs about some advanced features.
• [ ] Merge Docs - I've tried to write these pages so that they should slot neatly into xarray's existing docs structure. Careful reading, additions and improvements would be great though. Summary of what docs exist on this issue https://github.com/xarray-contrib/datatree/issues/61
• [ ] Write a blog post on the xarray blog highlighting xarray's new functionality, and explicitly thanking the NASA team for their work. Doesn't have to be long, it can just point to the documentation.

Anyone is welcome to help with any of this, including but not limited to @owenlittlejohns , @eni-awowale, @flamingbear (@etienneschalk maybe?).

cc also @shoyer @keewis for any thoughts as to the process.

FWIW one thing I'd be keen for to do generally — though maybe this isn't the place to start it — is handle warnings in the test suite when we add a new warning — i.e. filter them out where we expect them.

In this case, that would be the loading the netCDF files that have duplicate dims.

Otherwise warnings become a huge block of text without much salience. I mostly see the 350 lines of them and think "meh mostly units & cftime", but then something breaks on a new upstream release that was buried in there, or we have a supported code path that is raising warnings internally.

(I'm not sure whether it's possible to generally enforce that — maybe we could raise on any warnings coming from within xarray? Would be a non-trivial project to get us there though...)

Originally posted by @max-sixty in https://github.com/pydata/xarray/issues/8491#issuecomment-1834615826

What is your issue?

Whilst xarray's data model appears to allow 1D data variables that have the same name as their dimension, it seems to be impossible to actually create this using the Dataset constructor, as they will always be converted to coordinate variables instead.

We can create a 1D data variable with the same name as it's dimension like this: ```python In [9]: ds = xr.Dataset({'x': 0})

In [10]: ds Out[10]: <xarray.Dataset> Size: 8B Dimensions: () Data variables: x int64 8B 0

In [11]: ds.expand_dims('x') Out[11]: <xarray.Dataset> Size: 8B Dimensions: (x: 1) Dimensions without coordinates: x Data variables: x (x) int64 8B 0 ``` so it seems to be a valid part of the data model.

But I can't get to that situation from the Dataset constructor. This should create the same dataset:

```python In [15]: ds = xr.Dataset(data_vars={'x': ('x', [0])})

In [16]: ds Out[16]: <xarray.Dataset> Size: 8B Dimensions: (x: 1) Coordinates: * x (x) int64 8B 0 Data variables: empty `` But actually it makesxa coordinate variable (and implicitly creates a pandas Index for it). This means that in this case there is no difference between using thedata_varsandcoords` kwargs to the constructor:

```python ds = xr.Dataset(coords={'x': ('x', [0])})

In [18]: ds Out[18]: <xarray.Dataset> Size: 8B Dimensions: (x: 1) Coordinates: * x (x) int64 8B 0 Data variables: empty ```

This all seems weird to me. I would have thought that if a 1D data variable is allowed, we shouldn't coerce to making it a coordinate variable in the constructor. If anything that's actively misleading.

Note that whilst this came up in the context of trying to avoid auto-creation of 1D indexes for coordinate variables, this issue is actually separate. (xref https://github.com/pydata/xarray/pull/8872#issuecomment-2027571714)

cc @benbovy who probably has thoughts

Is your feature request related to a problem?

DataArray and Dataset have an .expand_dims method, but it looks like Variable doesn't.

Describe the solution you'd like

Variable should also have this method, the only difference being that it wouldn't create any coordinates or indexes.

Describe alternatives you've considered

No response

Additional context

No response

What happened?

Currently concatenation will automatically create indexes for any dimension coordinates in the output, even if there were no indexes on the input.

What did you expect to happen?

Indexes not to be created for variables which did not already have them.

Minimal Complete Verifiable Example

```Python

TODO once passing indexes={} directly to DataArray constructor is allowed then no need to create coords object separately first

coords = Coordinates( {"x": np.array([1, 2, 3])}, indexes={} ) arrays = [ DataArray( np.zeros((3, 3)), dims=["x", "y"], coords=coords, ) for _ in range(2) ]

combined = concat(arrays, dim="x") assert combined.shape == (6, 3) assert combined.dims == ("x", "y")

should not have auto-created any indexes

assert combined.indexes == {} # this fails

combined = concat(arrays, dim="z") assert combined.shape == (2, 3, 3) assert combined.dims == ("z", "x", "y")

should not have auto-created any indexes

assert combined.indexes == {} # this also fails ```

MVCE confirmation

• [X] Minimal example — the example is as focused as reasonably possible to demonstrate the underlying issue in xarray.
• [X] Complete example — the example is self-contained, including all data and the text of any traceback.
• [X] Verifiable example — the example copy & pastes into an IPython prompt or Binder notebook, returning the result.
• [X] New issue — a search of GitHub Issues suggests this is not a duplicate.
• [X] Recent environment — the issue occurs with the latest version of xarray and its dependencies.

Relevant log output

```Python

nor have auto-created any indexes

  assert combined.indexes == {}

E AssertionError: assert Indexes:\n x Index([1, 2, 3, 1, 2, 3], dtype='int64', name='x') == {} E Full diff: E - { E - , E - } E + Indexes: E + x Index([1, 2, 3, 1, 2, 3], dtype='int64', name='x', E + ) ```

Anything else we need to know?

The culprit is the call to core.indexes.create_default_index_implicit inside merge.py. If I comment out this call my concat test passes, but basic tests in test_merge.py start failing.

I would like know to how to avoid the internal call to create_default_index_implicit. I tried passing compat='override' but that made no difference, so I think we would have to change merge.collect_variables_and_indexes somehow.

Conceptually, I would have thought we should be examining what indexes exist on the objects to be concatenated, and not creating new indexes for any variable that doesn't already have one. Presumably we should therefore be making use of the indexes argument to merge.collect_variables_and_indexes, but currently that just seems to be empty.

Environment

I've been experimenting running this test on a branch that includes both #8711 and #8714, but actually this example will fail in the same way on main.

What is your issue?

The graphical representation of dask arrays with many dimensions can end up off the page in the HTML repr.

Ideally dask would worry about this for us, and we just use their _inline_repr, as mentioned here https://github.com/pydata/xarray/issues/4376#issuecomment-680296332

[Deepak: Should we add chunked_array_type and from_array_kwargs to open_mfdataset?

I actually don't think we need to - from_array_kwargs is only going to get directly passed down to open_dataset, and hence could be considered part of **kwargs.

This should actually just work, except in the case of parallel=True. For that we could add delayed to the ChunkManager ABC, so that if cubed does implement cubed.delayed it could be added, else a NotImplementedError would be raised. I think all of this wouldn't be necessary if we had lazy concatenation in xarray though (xref https://github.com/pydata/xarray/issues/4628). That suggestion would mean we should also replace other instances of dask.delayed in other parts of the codebase though... I think I will split this into a separate issue in the interests of getting this one merged.

Originally posted by @TomNicholas in https://github.com/pydata/xarray/pull/7019#discussion_r1182904134

What is your issue?

In the bi-weekly dev meeting today we agreed that deliberate higher-level discussions of datatree's design would be useful. (i.e. we're not worried about our ability to write high-quality code, so let's focus review time more explicitly on the high-level design questions.)

This could take the form of me just talking through what I did in a certain part of the code and why, or a targeted discussion on specific design questions that I was never quite sure about. Some examples of the latter, as food for thought: - [ ] Inheritance of dimension coordinates from parent nodes? https://github.com/xarray-contrib/datatree/issues/297 - [x] ~~Symbolic links? https://github.com/xarray-contrib/datatree/issues/5~~ (we decided this was overkill) - [ ] Is dt.ds ugly? See also the difference between dt.ds and dt.to_dataset() https://github.com/xarray-contrib/datatree/issues/303#issuecomment-1917798769 - [ ] Which methods should map over the subtree and which shouldn't? (can't find the issue for this one) - [ ] Ignore missing dims when mapping over subtree? https://github.com/xarray-contrib/datatree/issues/67 - [ ] API for sub-tree selection https://github.com/xarray-contrib/datatree/issues/254 - [ ] API for merging leaves https://github.com/xarray-contrib/datatree/issues/192 - [ ] Dict-like interface ambiguities https://github.com/xarray-contrib/datatree/issues/240 - [ ] The tree broadcasting rabbit hole https://github.com/xarray-contrib/datatree/issues/199 - [ ] Relationship between datatree and catalogs https://github.com/xarray-contrib/datatree/issues/134 - [ ] Should xr.concat/xr.merge accept DataTree objects? (and map over them by default?) Would help with https://github.com/TomNicholas/VirtualiZarr/issues/84#issuecomment-2065410549

There was also this design doc I wrote at one point

@flamingbear are you free at 11:30am EST on Tuesday each week? @shoyer, @keewis and I are all free then. Others also welcome (e.g. @owenlittlejohns , @eni-awowale, @etienneschalk), but not required :)

What is your issue?

In the datatree call today we narrowed down an issue with how datatree maps methods over many variables in many nodes. This issue is essentially https://github.com/xarray-contrib/datatree/issues/67, but I'll attempt to discuss the problem and solution in more general terms.

Context in xarray

xarray.Dataset is essentially a mapping of variable names to Variable objects, and most Dataset methods implicitly map a method defined on Variable over all these variables (e.g. .mean()). Sometimes the mapped method can be naively applied to every variable in the dataset, but sometimes it doesn't make sense to apply it to some of the variables. For example .mean(dim='time') only makes sense for the variables in the dataset that actually have a time dimension.

xarray.Dataset handles this for the user by either working out what version of the method does make sense for that variable (e.g. only trying to take the mean along the reduction dimensions actually present on that variable), or just passing the variable through unaltered. There are some weird subtleties lurking here, e.g. with statistical reductions like std and var.

https://github.com/pydata/xarray/blob/239309f881ba0d7e02280147bc443e6e286e6a63/xarray/core/dataset.py#L6853

There is therefore a difference between

ds.map(Variable.{REDUCTION}, dim='time') and ds.{REDUCTION}(dim='time')

For example:

```python In [13]: ds = xr.Dataset({'a': ('x', [1, 2]), 'b': 0})

In [14]: ds.isel(x=0) Out[14]: <xarray.Dataset> Size: 16B Dimensions: () Data variables: a int64 8B 1 b int64 8B 0

In [15]: ds.map(Variable.isel, x=0)

ValueError Traceback (most recent call last) Cell In[15], line 1 ----> 1 ds.map(Variable.isel, x=0)

...

ValueError: Dimensions {'x'} do not exist. Expected one or more of () ```

(Aside: It would be nice for Dataset.map to include information about which variable it raised an exception on in the error message.)

Clearly Dataset.isel does more than just applying Variable.isel using Dataset.map.

Issue in DataTree

In datatree we have to map methods over different variables in the same node, but also over different variables in different nodes. Currently the implementation of a method naively maps the Dataset method over every node using map_over_subtree, but if there is a node containing a variable for which the method args are invalid, it will raise an exception.

This causes problems for users, for example in https://github.com/xarray-contrib/datatree/issues/67. A minimal example of this problem would be

```python In [18]: ds1 = xr.Dataset({'a': ('x', [1, 2])})

In [19]: ds2 = xr.Dataset({'b': 0})

In [20]: dt = DataTree.from_dict({'node1': ds1, 'node2': ds2})

In [21]: dt Out[21]: DataTree('None', parent=None) ├── DataTree('node1') │ Dimensions: (x: 2) │ Dimensions without coordinates: x │ Data variables: │ a (x) int64 16B 1 2 └── DataTree('node2') Dimensions: () Data variables: b int64 8B 0

In [22]: dt.isel(x=0) ValueError: Dimensions {'x'} do not exist. Expected one or more of FrozenMappingWarningOnValuesAccess({}) Raised whilst mapping function over node with path /node2 ```

(The slightly weird error message here is related to the deprecation cycle in #8500)

We would have preferred that variable b in node2 survived unchanged, like it does in the pure Dataset example.

Desired behaviour

We can kind of think of the desired behaviour like a hypothesis property we want (xref https://github.com/pydata/xarray/issues/1846), but not quite. It would be something like

python dt.{REDUCTION}().flatten_into_dataset() == dt.flatten_into_dataset().{REDUCTION}()

except that .flatten_into_dataset() can't really exist for all cases otherwise we wouldn't need datatree.

Proposed Solution

There are two ways I can imagine implementing this. 1) Use map_over_subtree the apply the method as-is and try to catch known possible KeyErrors for missing dimensions. This would be fragile. 2) Do some kind of pre-checking of the data in the tree, potentially adjust the method before applying it using map_over_subtree.

I think @shoyer and I concluded that we should make (2), in the form of some kind of new primitive, i.e. DataTree.reduce. (Actually DataTree.reduce already exists, but should be changed to not just map_over_subtree Dataset.reduce). Taking after Dataset.reduce, it would look something like this:

```python class DataTree: def reduce(self, reduce_func: Callable, dim: Dims = None, , *kwargs) -> DataTree: all_dims_in_tree = set(node.dims for node in self.subtree)

    missing_dims = tuple(d for d in dims if d not in all_dims_in_tree)
    if missing_dims:
        raise ValueError()

    # TODO this could probably be refactored to call `map_over_subtree`
    for node in self.subtree:
        # using only the reduction dims that are actually present here would fix datatree GH issue #67
        reduce_dims = [d for d in node.dims if d in dims]
        result = node.ds.reduce(func, dims=reduce_dims, **kwargs)

    # TODO build the result and return it

```

Then every method that has this pattern of acting over one or more dims should be mapped over the tree using DataTree.reduce, not map_over_subtree.

cc @shoyer, @flamingbear, @owenlittlejohns

What happened?

Passing no data to the Dataset constructor can result in a very unhelpful "tuple index out of range" error when this is a clear case of malformed input that we should be able to catch.

What did you expect to happen?

An error more like "tuple must be of form (dims, data[, attrs])"

Minimal Complete Verifiable Example

Python xr.Dataset({"t": ()})

MVCE confirmation

• [X] Minimal example — the example is as focused as reasonably possible to demonstrate the underlying issue in xarray.
• [X] Complete example — the example is self-contained, including all data and the text of any traceback.
• [X] Verifiable example — the example copy & pastes into an IPython prompt or Binder notebook, returning the result.
• [ ] New issue — a search of GitHub Issues suggests this is not a duplicate.
• [X] Recent environment — the issue occurs with the latest version of xarray and its dependencies.

Relevant log output

```Python

IndexError Traceback (most recent call last) Cell In[2], line 1 ----> 1 xr.Dataset({"t": ()})

File ~/Documents/Work/Code/xarray/xarray/core/dataset.py:693, in Dataset.init(self, data_vars, coords, attrs) 690 if isinstance(coords, Dataset): 691 coords = coords._variables --> 693 variables, coord_names, dims, indexes, _ = merge_data_and_coords( 694 data_vars, coords 695 ) 697 self._attrs = dict(attrs) if attrs else None 698 self._close = None

File ~/Documents/Work/Code/xarray/xarray/core/dataset.py:422, in merge_data_and_coords(data_vars, coords) 418 coords = create_coords_with_default_indexes(coords, data_vars) 420 # exclude coords from alignment (all variables in a Coordinates object should 421 # already be aligned together) and use coordinates' indexes to align data_vars --> 422 return merge_core( 423 [data_vars, coords], 424 compat="broadcast_equals", 425 join="outer", 426 explicit_coords=tuple(coords), 427 indexes=coords.xindexes, 428 priority_arg=1, 429 skip_align_args=[1], 430 )

File ~/Documents/Work/Code/xarray/xarray/core/merge.py:718, in merge_core(objects, compat, join, combine_attrs, priority_arg, explicit_coords, indexes, fill_value, skip_align_args) 715 for pos, obj in skip_align_objs: 716 aligned.insert(pos, obj) --> 718 collected = collect_variables_and_indexes(aligned, indexes=indexes) 719 prioritized = _get_priority_vars_and_indexes(aligned, priority_arg, compat=compat) 720 variables, out_indexes = merge_collected( 721 collected, prioritized, compat=compat, combine_attrs=combine_attrs 722 )

File ~/Documents/Work/Code/xarray/xarray/core/merge.py:358, in collect_variables_and_indexes(list_of_mappings, indexes) 355 indexes_.pop(name, None) 356 append_all(coords_, indexes_) --> 358 variable = as_variable(variable, name=name, auto_convert=False) 359 if name in indexes: 360 append(name, variable, indexes[name])

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:126, in as_variable(obj, name, auto_convert) 124 obj = obj.copy(deep=False) 125 elif isinstance(obj, tuple): --> 126 if isinstance(obj[1], DataArray): 127 raise TypeError( 128 f"Variable {name!r}: Using a DataArray object to construct a variable is" 129 " ambiguous, please extract the data using the .data property." 130 ) 131 try:

IndexError: tuple index out of range ```

Anything else we need to know?

No response

Environment

Xarray main

What happened?

It is currently possible to create a Coordinates object where a variable shares a name with a dimension, but the variable is not 1D. This is explicitly forbidden by the xarray data model.

What did you expect to happen?

If you try to pass the resulting object into the Dataset constructor you get the expected error telling you that this is forbidden, but that error should have been raised by Coordinates.__init__.

Minimal Complete Verifiable Example

```Python In [1]: from xarray.core.coordinates import Coordinates

In [2]: from xarray.core.variable import Variable

In [4]: import numpy as np

In [5]: var = Variable(data=np.arange(6).reshape(2, 3), dims=['x', 'y'])

In [6]: var Out[6]: <xarray.Variable (x: 2, y: 3)> Size: 48B array([[0, 1, 2], [3, 4, 5]])

In [7]: coords = Coordinates(coords={'x': var}, indexes={})

In [8]: coords Out[8]: Coordinates: x (x, y) int64 48B 0 1 2 3 4 5

In [10]: import xarray as xr

In [11]: ds = xr.Dataset(coords=coords)

MergeError Traceback (most recent call last) Cell In[11], line 1 ----> 1 ds = xr.Dataset(coords=coords)

File ~/Documents/Work/Code/xarray/xarray/core/dataset.py:693, in Dataset.init(self, data_vars, coords, attrs) 690 if isinstance(coords, Dataset): 691 coords = coords._variables --> 693 variables, coord_names, dims, indexes, _ = merge_data_and_coords( 694 data_vars, coords 695 ) 697 self._attrs = dict(attrs) if attrs else None 698 self._close = None

File ~/Documents/Work/Code/xarray/xarray/core/dataset.py:422, in merge_data_and_coords(data_vars, coords) 418 coords = create_coords_with_default_indexes(coords, data_vars) 420 # exclude coords from alignment (all variables in a Coordinates object should 421 # already be aligned together) and use coordinates' indexes to align data_vars --> 422 return merge_core( 423 [data_vars, coords], 424 compat="broadcast_equals", 425 join="outer", 426 explicit_coords=tuple(coords), 427 indexes=coords.xindexes, 428 priority_arg=1, 429 skip_align_args=[1], 430 )

File ~/Documents/Work/Code/xarray/xarray/core/merge.py:731, in merge_core(objects, compat, join, combine_attrs, priority_arg, explicit_coords, indexes, fill_value, skip_align_args) 729 coord_names.intersection_update(variables) 730 if explicit_coords is not None: --> 731 assert_valid_explicit_coords(variables, dims, explicit_coords) 732 coord_names.update(explicit_coords) 733 for dim, size in dims.items():

File ~/Documents/Work/Code/xarray/xarray/core/merge.py:577, in assert_valid_explicit_coords(variables, dims, explicit_coords) 575 for coord_name in explicit_coords: 576 if coord_name in dims and variables[coord_name].dims != (coord_name,): --> 577 raise MergeError( 578 f"coordinate {coord_name} shares a name with a dataset dimension, but is " 579 "not a 1D variable along that dimension. This is disallowed " 580 "by the xarray data model." 581 )

MergeError: coordinate x shares a name with a dataset dimension, but is not a 1D variable along that dimension. This is disallowed by the xarray data model. ```

MVCE confirmation

• [X] Minimal example — the example is as focused as reasonably possible to demonstrate the underlying issue in xarray.
• [X] Complete example — the example is self-contained, including all data and the text of any traceback.
• [X] Verifiable example — the example copy & pastes into an IPython prompt or Binder notebook, returning the result.
• [x] New issue — a search of GitHub Issues suggests this is not a duplicate.
• [X] Recent environment — the issue occurs with the latest version of xarray and its dependencies.

Relevant log output

No response

Anything else we need to know?

I noticed this whilst working on #8872

Environment

main

What happened?

The workaround described in https://github.com/pydata/xarray/pull/8107#discussion_r1311214263 does not seem to work on main, meaning that I think there is currently no way to create an xr.Coordinates object without 1D variables being coerced to indexes. This means there is no way to create a Dataset object without 1D variables becoming IndexVariables being coerced to indexes.

What did you expect to happen?

I expected to at least be able to use the workaround described in https://github.com/pydata/xarray/pull/8107#discussion_r1311214263, i.e.

python xr.Coordinates({'x': ('x', uarr)}, indexes={}) where uarr is an un-indexable array-like.

Minimal Complete Verifiable Example

```Python class UnindexableArrayAPI: ...

class UnindexableArray: """ Presents like an N-dimensional array but doesn't support changes of any kind, nor can it be coerced into a np.ndarray or pd.Index. """

_shape: tuple[int, ...]
_dtype: np.dtype

def __init__(self, shape: tuple[int, ...], dtype: np.dtype) -> None:
    self._shape = shape
    self._dtype = dtype
    self.__array_namespace__ = UnindexableArrayAPI

@property
def dtype(self) -> np.dtype:
    return self._dtype

@property
def shape(self) -> tuple[int, ...]:
    return self._shape

@property
def ndim(self) -> int:
    return len(self.shape)

@property
def size(self) -> int:
    return np.prod(self.shape)

@property
def T(self) -> Self:
    raise NotImplementedError()

def __repr__(self) -> str:
    return f"UnindexableArray(shape={self.shape}, dtype={self.dtype})"

def _repr_inline_(self, max_width):
    """
    Format to a single line with at most max_width characters. Used by xarray.
    """
    return self.__repr__()

def __getitem__(self, key, /) -> Self:
    """
    Only supports extremely limited indexing.

    I only added this method because xarray will apparently attempt to index into its lazy indexing classes even if the operation would be a no-op anyway.
    """
    from xarray.core.indexing import BasicIndexer

    if isinstance(key, BasicIndexer) and key.tuple == ((slice(None),) * self.ndim):
        # no-op
        return self
    else:
        raise NotImplementedError()

def __array__(self) -> np.ndarray:
    raise NotImplementedError("UnindexableArrays can't be converted into numpy arrays or pandas Index objects")

```

```python uarr = UnindexableArray(shape=(3,), dtype=np.dtype('int32'))

xr.Variable(data=uarr, dims=['x']) # works fine

xr.Coordinates({'x': ('x', uarr)}, indexes={}) # works in xarray v2023.08.0 but in versions after that it triggers the NotImplementedError in `__array__`:python

NotImplementedError Traceback (most recent call last) Cell In[59], line 1 ----> 1 xr.Coordinates({'x': ('x', uarr)}, indexes={})

File ~/Documents/Work/Code/xarray/xarray/core/coordinates.py:301, in Coordinates.init(self, coords, indexes) 299 variables = {} 300 for name, data in coords.items(): --> 301 var = as_variable(data, name=name) 302 if var.dims == (name,) and indexes is None: 303 index, index_vars = create_default_index_implicit(var, list(coords))

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:159, in as_variable(obj, name) 152 raise TypeError( 153 f"Variable {name!r}: unable to convert object into a variable without an " 154 f"explicit list of dimensions: {obj!r}" 155 ) 157 if name is not None and name in obj.dims and obj.ndim == 1: 158 # automatically convert the Variable into an Index --> 159 obj = obj.to_index_variable() 161 return obj

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:572, in Variable.to_index_variable(self) 570 def to_index_variable(self) -> IndexVariable: 571 """Return this variable as an xarray.IndexVariable""" --> 572 return IndexVariable( 573 self._dims, self._data, self._attrs, encoding=self._encoding, fastpath=True 574 )

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:2642, in IndexVariable.init(self, dims, data, attrs, encoding, fastpath) 2640 # Unlike in Variable, always eagerly load values into memory 2641 if not isinstance(self._data, PandasIndexingAdapter): -> 2642 self._data = PandasIndexingAdapter(self._data)

File ~/Documents/Work/Code/xarray/xarray/core/indexing.py:1481, in PandasIndexingAdapter.init(self, array, dtype) 1478 def init(self, array: pd.Index, dtype: DTypeLike = None): 1479 from xarray.core.indexes import safe_cast_to_index -> 1481 self.array = safe_cast_to_index(array) 1483 if dtype is None: 1484 self._dtype = get_valid_numpy_dtype(array)

File ~/Documents/Work/Code/xarray/xarray/core/indexes.py:469, in safe_cast_to_index(array) 459 emit_user_level_warning( 460 ( 461 "pandas.Index does not support the float16 dtype." (...) 465 category=DeprecationWarning, 466 ) 467 kwargs["dtype"] = "float64" --> 469 index = pd.Index(np.asarray(array), **kwargs) 471 return _maybe_cast_to_cftimeindex(index)

Cell In[55], line 63, in UnindexableArray.array(self) 62 def array(self) -> np.ndarray: ---> 63 raise NotImplementedError("UnindexableArrays can't be converted into numpy arrays or pandas Index objects")

NotImplementedError: UnindexableArrays can't be converted into numpy arrays or pandas Index objects ```

MVCE confirmation

• [x] Minimal example — the example is as focused as reasonably possible to demonstrate the underlying issue in xarray.
• [x] Complete example — the example is self-contained, including all data and the text of any traceback.
• [x] Verifiable example — the example copy & pastes into an IPython prompt or Binder notebook, returning the result.
• [x] New issue — a search of GitHub Issues suggests this is not a duplicate.
• [x] Recent environment — the issue occurs with the latest version of xarray and its dependencies.

Relevant log output

No response

Anything else we need to know?

Context is #8699

Environment

Versions described above

Is your feature request related to a problem?

Within pangeo-forge's internals we would like to call open_dataset, then to_dict(), and end up with a schema-like representation of the contents of the dataset. This works, but it also has the side-effect of loading all indexes into memory, even if we are loading the data values "lazily".

Describe the solution you'd like

@benbovy do you think it would be possible to (perhaps optionally) also avoid loading indexes upon opening a dataset, so that we actually don't load anything? The end result would act a bit like ncdump does.

Describe alternatives you've considered

Otherwise we might have to try using xarray-schema or something but the suggestion here would be much neater and more flexible.

xref: https://github.com/pangeo-forge/pangeo-forge-recipes/issues/256

cc @rabernat @jhamman @cisaacstern

What happened?

Here are two toy datasets designed to represent sections of a dataset that has variables living on a staggered grid. This type of dataset is common in fluid modelling (it's why xGCM exists).

```python import xarray as xr

ds1 = xr.Dataset( coords={ 'x_center': ('x_center', [1, 2, 3]), 'x_outer': ('x_outer', [0.5, 1.5, 2.5, 3.5]),
}, )

ds2 = xr.Dataset( coords={ 'x_center': ('x_center', [4, 5, 6]), 'x_outer': ('x_outer', [4.5, 5.5, 6.5]),
}, ) ```

Calling xr.concat on these with dim='x_center' happily concatenates them python xr.concat([ds1, ds2], dim='x_center') <xarray.Dataset> Dimensions: (x_outer: 7, x_center: 6) Coordinates: * x_outer (x_outer) float64 0.5 1.5 2.5 3.5 4.5 5.5 6.5 * x_center (x_center) int64 1 2 3 4 5 6 Data variables: *empty* but notice that the returned result has been concatenated along both x_center and x_outer.

What did you expect to happen?

I did not expect this to work. I definitely didn't expect the datasets to be concatenated along a dimension I didn't ask them to be concatenated along (i.e. x_outer).

What I expected to happen was that (as by default coords='different') both variables would be attempted to be concatenated along the x_center dimension, which would have succeeded for the x_center variable but failed for the x_outer variable. Indeed, if I name the variables differently so that they are no longer coordinate variables then that is what happens:

```python import xarray as xr

ds1 = xr.Dataset( data_vars={ 'a': ('x_center', [1, 2, 3]), 'b': ('x_outer', [0.5, 1.5, 2.5, 3.5]),
}, )

ds2 = xr.Dataset( data_vars={ 'a': ('x_center', [4, 5, 6]), 'b': ('x_outer', [4.5, 5.5, 6.5]),
}, ) python xr.concat([ds1, ds2], dim='x_center', data_vars='different') ValueError: cannot reindex or align along dimension 'x_outer' because of conflicting dimension sizes: {3, 4} ```

Minimal Complete Verifiable Example

No response

MVCE confirmation

• [X] Minimal example — the example is as focused as reasonably possible to demonstrate the underlying issue in xarray.
• [X] Complete example — the example is self-contained, including all data and the text of any traceback.
• [X] Verifiable example — the example copy & pastes into an IPython prompt or Binder notebook, returning the result.
• [X] New issue — a search of GitHub Issues suggests this is not a duplicate.

Relevant log output

No response

Anything else we need to know?

I was trying to create an example for which you would need the automatic combined concat/merge that happens within xr.combine_by_coords.

Environment

xarray 2023.8.0

What happened?

When I set the .encoding['dtype'] attribute before saving a to disk, the actual on-disk representation appears to store a record of the dtype encoding, but when opening it back up in xarray I get the same dtype I had before, not the one specified in the encoding. Is that what's supposed to happen? How does this work? (This happens with both zarr and netCDF.)

What did you expect to happen?

I expected that setting .encoding['dtype'] would mean that once I open the data back up, it would be in the new dtype that I set in the encoding.

Minimal Complete Verifiable Example

```Python air = xr.tutorial.open_dataset('air_temperature')

air['air'].dtype # returns dtype('float32')

air['air'].encoding['dtype'] # returns dtype('int16'), which already seems weird

air.to_zarr('air.zarr') # I would assume here that the encoding actually does something during IO

now if I check the zarr .zarray metadata for the air variable it says

"dtype":"<i2"`

air2 = xr.open_dataset('air.zarr', engine='zarr') # open it back up

air2['air'].dtype # returns dtype('float32'), but I expected dtype('int16')

(the same thing happens also with saving to netCDF instead of Zarr) ```

MVCE confirmation

• [X] Minimal example — the example is as focused as reasonably possible to demonstrate the underlying issue in xarray.
• [X] Complete example — the example is self-contained, including all data and the text of any traceback.
• [X] Verifiable example — the example copy & pastes into an IPython prompt or Binder notebook, returning the result.
• [X] New issue — a search of GitHub Issues suggests this is not a duplicate.
• [X] Recent environment — the issue occurs with the latest version of xarray and its dependencies.

Relevant log output

No response

Anything else we need to know?

I know I didn't explicitly cast with .asdtype, but I'm still confused as to what the relation between the dtype encoding is supposed to be here.

I am probably just misunderstanding how this is supposed to work, but then this is arguably a docs issue, because here it says "[the encoding dtype field] controls the type of the data written on disk", which I would have thought also affects the data you get back when you open it up again?

Environment

main branch of xarray

What is your issue?

In https://github.com/fsspec/kerchunk/issues/377 the idea came up of using the xarray API to concatenate arrays which represent parts of a zarr store - i.e. using xarray to kerchunk a large set of netCDF files instead of using kerchunk.combine.MultiZarrToZarr.

The idea is to make something like this work for kerchunking sets of netCDF files into zarr stores

```python ds = xr.open_mfdataset( '/my/files*.nc' engine='kerchunk', # kerchunk registers an xarray IO backend that returns zarr.Array objects combine='nested', # 'by_coords' would require actually reading coordinate data parallel=True, # would use dask.delayed to generate reference dicts for each file in parallel )

ds # now wraps a bunch of zarr.Array / kerchunk.Array objects, no need for dask arrays

ds.kerchunk.to_zarr(store='out.zarr') # kerchunk defines an xarray accessor that extracts the zarr arrays and serializes them (which could also be done in parallel if writing to parquet) ```

I had a go at doing this in this notebook, and in doing so discovered a few potential issues with xarray's internals.

For this to work xarray has to: - Wrap a kerchunk.Array object which barely defines any array API methods, including basically not supporting indexing at all, - Store all the information present in a kerchunked Zarr store but without ever loading any data, - Not create any indexes by default during dataset construction or during xr.concat, - Not try to do anything else that can't be defined for a kerchunk.Array. - Possibly we need the Lazy Indexing classes to support concatenation https://github.com/pydata/xarray/issues/4628

It's an interesting exercise in using xarray as an abstraction, with no access to real numerical values at all.

What happened?

Broadcasting fails for array types that strictly follow the array API standard.

What did you expect to happen?

With a normal numpy array this obviously works fine.

Minimal Complete Verifiable Example

```Python import numpy.array_api as nxp

arr = nxp.asarray([[1, 2, 3], [4, 5, 6]], dtype=np.dtype('float32'))

var = xr.Variable(data=arr, dims=['x', 'y'])

var.isel(x=0) # this is fine

var * var.isel(x=0) # this is not

IndexError Traceback (most recent call last) Cell In[31], line 1 ----> 1 var * var.isel(x=0)

File ~/Documents/Work/Code/xarray/xarray/core/_typed_ops.py:487, in VariableOpsMixin.mul(self, other) 486 def mul(self, other: VarCompatible) -> Self | T_DataArray: --> 487 return self._binary_op(other, operator.mul)

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:2406, in Variable._binary_op(self, other, f, reflexive) 2404 other_data, self_data, dims = _broadcast_compat_data(other, self) 2405 else: -> 2406 self_data, other_data, dims = _broadcast_compat_data(self, other) 2407 keep_attrs = _get_keep_attrs(default=False) 2408 attrs = self._attrs if keep_attrs else None

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:2922, in _broadcast_compat_data(self, other) 2919 def _broadcast_compat_data(self, other): 2920 if all(hasattr(other, attr) for attr in ["dims", "data", "shape", "encoding"]): 2921 # other satisfies the necessary Variable API for broadcast_variables -> 2922 new_self, new_other = _broadcast_compat_variables(self, other) 2923 self_data = new_self.data 2924 other_data = new_other.data

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:2899, in _broadcast_compat_variables(*variables) 2893 """Create broadcast compatible variables, with the same dimensions. 2894 2895 Unlike the result of broadcast_variables(), some variables may have 2896 dimensions of size 1 instead of the size of the broadcast dimension. 2897 """ 2898 dims = tuple(_unified_dims(variables)) -> 2899 return tuple(var.set_dims(dims) if var.dims != dims else var for var in variables)

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:2899, in <genexpr>(.0) 2893 """Create broadcast compatible variables, with the same dimensions. 2894 2895 Unlike the result of broadcast_variables(), some variables may have 2896 dimensions of size 1 instead of the size of the broadcast dimension. 2897 """ 2898 dims = tuple(_unified_dims(variables)) -> 2899 return tuple(var.set_dims(dims) if var.dims != dims else var for var in variables)

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:1479, in Variable.set_dims(self, dims, shape) 1477 expanded_data = duck_array_ops.broadcast_to(self.data, tmp_shape) 1478 else: -> 1479 expanded_data = self.data[(None,) * (len(expanded_dims) - self.ndim)] 1481 expanded_var = Variable( 1482 expanded_dims, expanded_data, self._attrs, self._encoding, fastpath=True 1483 ) 1484 return expanded_var.transpose(*dims)

File ~/miniconda3/envs/dev3.11/lib/python3.12/site-packages/numpy/array_api/_array_object.py:555, in Array.getitem(self, key) 550 """ 551 Performs the operation getitem. 552 """ 553 # Note: Only indices required by the spec are allowed. See the 554 # docstring of _validate_index --> 555 self._validate_index(key) 556 if isinstance(key, Array): 557 # Indexing self._array with array_api arrays can be erroneous 558 key = key._array

File ~/miniconda3/envs/dev3.11/lib/python3.12/site-packages/numpy/array_api/_array_object.py:348, in Array._validate_index(self, key) 344 elif n_ellipsis == 0: 345 # Note boolean masks must be the sole index, which we check for 346 # later on. 347 if not key_has_mask and n_single_axes < self.ndim: --> 348 raise IndexError( 349 f"{self.ndim=}, but the multi-axes index only specifies " 350 f"{n_single_axes} dimensions. If this was intentional, " 351 "add a trailing ellipsis (...) which expands into as many " 352 "slices (:) as necessary - this is what np.ndarray arrays " 353 "implicitly do, but such flat indexing behaviour is not " 354 "specified in the Array API." 355 ) 357 if n_ellipsis == 0: 358 indexed_shape = self.shape

IndexError: self.ndim=1, but the multi-axes index only specifies 0 dimensions. If this was intentional, add a trailing ellipsis (...) which expands into as many slices (:) as necessary - this is what np.ndarray arrays implicitly do, but such flat indexing behaviour is not specified in the Array API. ```

MVCE confirmation

• [X] Minimal example — the example is as focused as reasonably possible to demonstrate the underlying issue in xarray.
• [X] Complete example — the example is self-contained, including all data and the text of any traceback.
• [X] Verifiable example — the example copy & pastes into an IPython prompt or Binder notebook, returning the result.
• [X] New issue — a search of GitHub Issues suggests this is not a duplicate.
• [X] Recent environment — the issue occurs with the latest version of xarray and its dependencies.

Relevant log output

No response

Anything else we need to know?

No response

Environment

main branch of xarray, numpy 1.26.0

What happened?

Unstacking fails for array types that strictly follow the array API standard.

What did you expect to happen?

This obviously works fine with a normal numpy array.

Minimal Complete Verifiable Example

```Python import numpy.array_api as nxp

arr = nxp.asarray([[1, 2, 3], [4, 5, 6]], dtype=np.dtype('float32'))

da = xr.DataArray( arr, coords=[("x", ["a", "b"]), ("y", [0, 1, 2])], ) da stacked = da.stack(z=("x", "y")) stacked.indexes["z"] stacked.unstack()

AttributeError Traceback (most recent call last) Cell In[65], line 8 6 stacked = da.stack(z=("x", "y")) 7 stacked.indexes["z"] ----> 8 roundtripped = stacked.unstack() 9 arr.identical(roundtripped)

File ~/Documents/Work/Code/xarray/xarray/util/deprecation_helpers.py:115, in _deprecate_positional_args.<locals>._decorator.<locals>.inner(args, kwargs) 111 kwargs.update({name: arg for name, arg in zip_args}) 113 return func(args[:-n_extra_args], kwargs) --> 115 return func(*args, kwargs)

File ~/Documents/Work/Code/xarray/xarray/core/dataarray.py:2913, in DataArray.unstack(self, dim, fill_value, sparse) 2851 @_deprecate_positional_args("v2023.10.0") 2852 def unstack( 2853 self, (...) 2857 sparse: bool = False, 2858 ) -> Self: 2859 """ 2860 Unstack existing dimensions corresponding to MultiIndexes into 2861 multiple new dimensions. (...) 2911 DataArray.stack 2912 """ -> 2913 ds = self._to_temp_dataset().unstack(dim, fill_value=fill_value, sparse=sparse) 2914 return self._from_temp_dataset(ds)

File ~/Documents/Work/Code/xarray/xarray/util/deprecation_helpers.py:115, in _deprecate_positional_args.<locals>._decorator.<locals>.inner(args, kwargs) 111 kwargs.update({name: arg for name, arg in zip_args}) 113 return func(args[:-n_extra_args], kwargs) --> 115 return func(*args, kwargs)

File ~/Documents/Work/Code/xarray/xarray/core/dataset.py:5581, in Dataset.unstack(self, dim, fill_value, sparse) 5579 for d in dims: 5580 if needs_full_reindex: -> 5581 result = result._unstack_full_reindex( 5582 d, stacked_indexes[d], fill_value, sparse 5583 ) 5584 else: 5585 result = result._unstack_once(d, stacked_indexes[d], fill_value, sparse)

File ~/Documents/Work/Code/xarray/xarray/core/dataset.py:5474, in Dataset._unstack_full_reindex(self, dim, index_and_vars, fill_value, sparse) 5472 if name not in index_vars: 5473 if dim in var.dims: -> 5474 variables[name] = var.unstack({dim: new_dim_sizes}) 5475 else: 5476 variables[name] = var

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:1684, in Variable.unstack(self, dimensions, **dimensions_kwargs) 1682 result = self 1683 for old_dim, dims in dimensions.items(): -> 1684 result = result._unstack_once_full(dims, old_dim) 1685 return result

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:1574, in Variable._unstack_once_full(self, dim, old_dim) 1571 reordered = self.transpose(*dim_order) 1573 new_shape = reordered.shape[: len(other_dims)] + new_dim_sizes -> 1574 new_data = reordered.data.reshape(new_shape) 1575 new_dims = reordered.dims[: len(other_dims)] + new_dim_names 1577 return type(self)( 1578 new_dims, new_data, self._attrs, self._encoding, fastpath=True 1579 )

AttributeError: 'Array' object has no attribute 'reshape' ```

MVCE confirmation

• [X] Minimal example — the example is as focused as reasonably possible to demonstrate the underlying issue in xarray.
• [X] Complete example — the example is self-contained, including all data and the text of any traceback.
• [X] Verifiable example — the example copy & pastes into an IPython prompt or Binder notebook, returning the result.
• [X] New issue — a search of GitHub Issues suggests this is not a duplicate.
• [X] Recent environment — the issue occurs with the latest version of xarray and its dependencies.

Relevant log output

No response

Anything else we need to know?

It fails on the arr.reshape call, because the array API standard has reshape be a function, not a method.

We do in fact have an array API-compatible version of reshape defined in duck_array_ops.py, it just apparently isn't yet used everywhere we call reshape.

https://github.com/pydata/xarray/blob/037a39e249e5387bc15de447c57bfd559fd5a574/xarray/core/duck_array_ops.py#L363

Environment

main branch of xarray, numpy 1.26.0

What happened?

Vectorized indexing can fail for array types that strictly follow the array API standard.

What did you expect to happen?

Vectorized indexing to all work.

Minimal Complete Verifiable Example

```Python import numpy.array_api as nxp

da = xr.DataArray( nxp.reshape(nxp.arange(12), (3, 4)), dims=["x", "y"], coords={"x": [0, 1, 2], "y": ["a", "b", "c", "d"]}, )

da[[0, 2, 2], [1, 3]] # works

ind_x = xr.DataArray([0, 1], dims=["x"]) ind_y = xr.DataArray([0, 1], dims=["y"])

da[ind_x, ind_y] # works

da[[0, 1], ind_x] # doesn't work

TypeError Traceback (most recent call last) Cell In[157], line 1 ----> 1 da[[0, 1], ind_x]

File ~/Documents/Work/Code/xarray/xarray/core/dataarray.py:859, in DataArray.getitem(self, key) 856 return self._getitem_coord(key) 857 else: 858 # xarray-style array indexing --> 859 return self.isel(indexers=self._item_key_to_dict(key))

File ~/Documents/Work/Code/xarray/xarray/core/dataarray.py:1472, in DataArray.isel(self, indexers, drop, missing_dims, **indexers_kwargs) 1469 indexers = either_dict_or_kwargs(indexers, indexers_kwargs, "isel") 1471 if any(is_fancy_indexer(idx) for idx in indexers.values()): -> 1472 ds = self._to_temp_dataset()._isel_fancy( 1473 indexers, drop=drop, missing_dims=missing_dims 1474 ) 1475 return self._from_temp_dataset(ds) 1477 # Much faster algorithm for when all indexers are ints, slices, one-dimensional 1478 # lists, or zero or one-dimensional np.ndarray's

File ~/Documents/Work/Code/xarray/xarray/core/dataset.py:3001, in Dataset._isel_fancy(self, indexers, drop, missing_dims) 2997 var_indexers = { 2998 k: v for k, v in valid_indexers.items() if k in var.dims 2999 } 3000 if var_indexers: -> 3001 new_var = var.isel(indexers=var_indexers) 3002 # drop scalar coordinates 3003 # https://github.com/pydata/xarray/issues/6554 3004 if name in self.coords and drop and new_var.ndim == 0:

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:1130, in Variable.isel(self, indexers, missing_dims, **indexers_kwargs) 1127 indexers = drop_dims_from_indexers(indexers, self.dims, missing_dims) 1129 key = tuple(indexers.get(dim, slice(None)) for dim in self.dims) -> 1130 return self[key]

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:812, in Variable.getitem(self, key) 799 """Return a new Variable object whose contents are consistent with 800 getting the provided key from the underlying data. 801 (...) 809 array x.values directly. 810 """ 811 dims, indexer, new_order = self._broadcast_indexes(key) --> 812 data = as_indexable(self._data)[indexer] 813 if new_order: 814 data = np.moveaxis(data, range(len(new_order)), new_order)

File ~/Documents/Work/Code/xarray/xarray/core/indexing.py:1390, in ArrayApiIndexingAdapter.getitem(self, key) 1388 else: 1389 if isinstance(key, VectorizedIndexer): -> 1390 raise TypeError("Vectorized indexing is not supported") 1391 else: 1392 raise TypeError(f"Unrecognized indexer: {key}")

TypeError: Vectorized indexing is not supported ```

MVCE confirmation

• [X] Minimal example — the example is as focused as reasonably possible to demonstrate the underlying issue in xarray.
• [X] Complete example — the example is self-contained, including all data and the text of any traceback.
• [X] Verifiable example — the example copy & pastes into an IPython prompt or Binder notebook, returning the result.
• [X] New issue — a search of GitHub Issues suggests this is not a duplicate.
• [X] Recent environment — the issue occurs with the latest version of xarray and its dependencies.

Relevant log output

No response

Anything else we need to know?

I don't really understand why the first two examples work but the last one doesn't...

Environment

main branch of xarray, numpy 1.26.0

What is your issue?

In #4972 @keewis started writing a public framework for testing the integration of any duck array class in xarray, inspired by the testing framework pandas has for ExtensionArrays. This is a meta-issue for what our version of that framework for wrapping numpy-like duck arrays should look like.

(Feel free to edit / add to this)

What behaviour should we test?

We have a lot of xarray methods to test with any type of duck array. Each of these bullets should correspond to one or more testing base classes which the duck array library author would inherit from. In rough order of increasing complexity:

• [x] Constructors - Including for Variable #6903
• [x] Properties - checking that .shape, .dtype etc. exist on the wrapped array, see #4285 for example #6903
• [x] Reductions - #4972 also uses parameters to automatically test many methods, and hypothesis to test each method for many different array instances.
• [ ] Unary ops
• [ ] Binary ops
• [ ] Selection
• [ ] Computation
• [ ] Combining
• [ ] Groupby
• [ ] Rolling
• [ ] Coarsen
• [ ] Weighted

We don't need to test that the array class obeys everything else in the Array API Standard. (For instance .device is probably never going to be used by xarray directly.) We instead assume that if the array class doesn't implement something in the API standard but all the generated tests pass, then all is well.

How extensible does our testing framework need to be?

To be able to test any type of wrapped array our testing framework needs to itself be quite flexible.

• User-defined checking - For some arrays np.testing.assert_equal is not enough to guarantee correctness, so the user creating tests needs to specify additional checks. #4972 shows how to do this for checking the units of resulting pint arrays.
• User-created data? - Some array libraries might need to test array data that is invalid for numpy arrays. I'm thinking specifically of testing wrapping ragged arrays. #4285
• Parallel computing frameworks? - Related to the last point is chunked arrays. Here the strategy requires an extra chunks argument when the array is created, and any results need to first call .compute(). Testing parallel-executed arrays might also require pretty complicated SetUps and TearDowns in fixtures too. (see also #6807)

What documentation / examples do we need?

All of this content should really go on a dedicated page in the docs, perhaps grouped alongside other ways of extending xarray.

• [ ] Motivation
• [ ] What subset of the Array API standard we expect duck array classes to define (could point to a typing protocol?)
• [ ] Explanation that the array type needs to return the same type for any numpy-like function which xarray might call upon that type (i.e. the set of duckarray instances is closed under numpy operations)
• [ ] Explanation of the different base classes
• [ ] Simple demo of testing a toy numpy-like array class
• [ ] Point to code testing more advanced examples we actually use (e.g. sparse, pint)
• [ ] Which advanced behaviours are optional (e.g. Constructors and Properties have to work, but Groupby is optional)

Where should duck array compatibility testing eventually live?

Right now the tests for sparse & pint are going into the xarray repo, but presumably we don't want tests for every duck array type living in this repository. I suggest that we want to work towards eventually having no array library-specific tests in this repository at all. (Except numpy I guess.) Thanks @crusaderky for the original suggestion.

Instead all tests involving pint could live in pint-xarray, all involving sparse could live in the sparse repository (or a new sparse-xarray repo), etc. etc. We would set those test jobs to re-run when xarray is released, and then xref any issues revealed here if needs be.

We should probably also move some of our existing tests https://github.com/pydata/xarray/pull/7023#pullrequestreview-1104932752

What is your issue?

Meta-issue to track all the smaller issues around making xarray and the array API standard compatible with each other.

We've already had - #6804 - #7067 - #7847

and there will likely be many others.

I suspect this might require changes to the standard as well as to xarray - in particular see this list of common numpy functions which are not currently in the array API standard. Of these xarray currently uses (FYI @ralfgommers ):

• np.clip
• np.diff
• np.pad
• np.repeat
• ~np.take~
• ~np.tile~

What happened?

Since the v2024.01.0 release yesterday, there seems to be a rendering error in the website - the sidebar is squished up to the left:

What happened?

I have been given a netCDF file (I think it's netCDF3) which when I open it does not decode the time variable in the way I expected it to. The time coordinate created is a numpy object array

What did you expect to happen?

I expected it to automatically create a coordinate backed by a CFTimeIndex object, not a CFTimeIndex object wrapped inside another array type.

Minimal Complete Verifiable Example

The original problematic file is 455MB (I can share it if necessary), but I can create a small netCDF file that displays the same issue.

```python import cftime

time_values = [cftime.DatetimeNoLeap(347, 2, 1, 0, 0, 0, 0, has_year_zero=True)] time_ds = xr.Dataset(coords={'time': (['time'], time_values)}) print(time_ds) time_ds.to_netcdf('time_mwe.nc') <xarray.Dataset> Dimensions: (time: 1) Coordinates: * time (time) object 0347-02-01 00:00:00 Data variables: empty python ds = xr.open_dataset('time_mwe.nc', engine='netcdf4', decode_times=True, use_cftime=True) print(ds) <xarray.Dataset> Dimensions: (time: 1) Coordinates: * time (time) object 0347-02-01 00:00:00 Data variables: empty ```

MVCE confirmation

• [X] Minimal example — the example is as focused as reasonably possible to demonstrate the underlying issue in xarray.
• [X] Complete example — the example is self-contained, including all data and the text of any traceback.
• [X] Verifiable example — the example copy & pastes into an IPython prompt or Binder notebook, returning the result.
• [X] New issue — a search of GitHub Issues suggests this is not a duplicate.
• [X] Recent environment — the issue occurs with the latest version of xarray and its dependencies.

Relevant log output

No response

Anything else we need to know?

No response

Environment

cftime 1.6.2 netcdf4 1.6.4 xarray 2023.8.0

Is your feature request related to a problem?

7019 generalized most of xarrays internals to be able to use any chunked array type that we can create a ChunkManagerEntrypoint for. Most functions now go through this (e.g. apply_ufunc), but I did not redirect xarray.map_blocks to go through ChunkManagerEntrypoint.

This redirection works by dispatching to high-level dask.array primitives such as dask.array.apply_gufunc, dask.array.blockwise, and dask.array.map_blocks. However the current implementation of xarray.map_blocks is much lower-level, building a custom HLG, so it was not obvious how to swap it out.

Describe the solution you'd like

I would like to either:

1) Replace the current internals of xarray.map_blocks with a simple call to ChunkManagerEntrypoint.map_blocks. This would be the cleanest separation of concerns we could do here. Presumably there is some obvious reason why this cannot or should not be done, but I have yet to understand what that reason is. (either @dcherian or @tomwhite can you enlighten me perhaps? 🙏)

2) (More likely) refactor so that the existing guts of xarray.map_blocks are only called from the ChunkManagerEntrypoint, and a non-dask chunked array (i.e. cubed, but in theory other types too) would be able to specify how it wants to perform the map_blocks.

Describe alternatives you've considered

Leaving it as the status quo breaks the nice abstraction and separation of concerns that #7019 introduced.

Additional context

Split off from https://github.com/pydata/xarray/issues/8414

What is your issue?

The PR labeler bot seems to be broken

https://github.com/pydata/xarray/actions/runs/7107212418/job/19348227101?pr=8404

and even worse the repository has been archived!

https://github.com/andymckay/labeler

I actually like this bot, but unless a similar bot exists somewhere else I guess we should just delete this action 😞

What is your issue?

This is inconsistent:

```python In [25]: ds Out[25]: <xarray.Dataset> Dimensions: (x: 1, y: 2) Dimensions without coordinates: x, y Data variables: a (x, y) int64 0 1

In [26]: ds['a'].dims Out[26]: ('x', 'y')

In [27]: ds['a'].sizes Out[27]: Frozen({'x': 1, 'y': 2})

In [28]: ds.dims Out[28]: Frozen({'x': 1, 'y': 2})

In [29]: ds.sizes Out[29]: Frozen({'x': 1, 'y': 2}) ```

Surely ds.dims should return something like a Frozenset({'x', 'y'})? (because dimension order is meaningless when you have multiple arrays underneath - see https://github.com/pydata/xarray/issues/8498)

Feature proposal: xarray.interactive module

I've been experimenting with ipython widgets in jupyter notebooks, and I've been working on how we might use them to make xarray more interactive.

Motivation:

For most users who are exploring their data, it will be common to find themselves rerunning the same cells repeatedly but with slightly different values. In xarray's case that will often be in an .isel() or .sel() call, or selecting variables from a dataset. IPython widgets allow you to interact with your functions in a very intuitive way, which we could exploit. There are lots of tutorials on how to interact with pandas data (e.g. this great one), but I haven't seen any for interacting with xarray objects.

Relationship to other libraries:

Some downstream plotting libaries (such as @hvplot) already use widgets when interactively plotting xarray-derived data structures, but they don't seem to go the full N dimensions. This also isn't something that should be confined to plotting functions - you often choose slices or variables at the start of analysis, not just at the end. I'll come back to this idea later.

The default ipython widgets are pretty good, but we could write an xarray.interactive module in such a way that downstream developers can easily replace them with their own widgets.

Usage examples:

```python

imports

import ipywidgets as widgets import xarray.plot as xplot import xarray.interactive as interactive

Load tutorial data

ds = xr.tutorial.open_dataset('air_temperature')['air'] ```

Plotting against multiple dimensions interactively python interactive.isel(da, xplot.plot, lat=10, lon=50)

Interactively select a range from a dimension python def plot_mean_over_time(da): da.mean(dim=time) interactive.isel(da, plot_mean_over_time, time=slice(100, 500))

Animate over one dimension python from ipywidgets import Play interactive.isel(da, xplot.plot, time=Play())

API ideas:

We can write a function like this

python interactive.isel(da, func=xplot.plot, time=10)

which could also be used as a decorator something like this python @interactive.isel(da, time=10) def plot(da) return xplot.plot(da)

It would be nicer to be able to do this python @Interactive(da).isel(time=10) def plot(da) return xplot.plot(da) but Guido forbade it.

But we can attach these functions to an accessor to get python da.interactive.isel(xplot.plot, time=10)

Other ideas

Select variables from datasets ```python @interactive.data_vars(da1=ds['n'], da2=ds['T'], ...) def correlation(da1, da2, ...) ...

Would produce a dropdown list of variables for each dataset

```

Choose dimensions to apply functions over ```python @interactive.dims(dim='time') def mean(da, dim) ...

Would produce a dropdown list of dimensions in the dataarray

```

General interactive.explore() method to see variation over any number of dimensions, the default being all of them.

What do people think about this? Is it something that makes sense to include within xarray itself? (Dependencies aren't a problem because it's fine to have ipywidgets as an optional dependency just for this module.)

What is your issue?

Our docs have a general issue with having lots of related resources that are not necessarily linked together in a useful way. This results in users (including myself!) getting "stuck" in one part of the docs and being unaware of material that would help them solve their specific issue.

To give a concrete example, if a user wants to know about coarsen, there is relevant material:

• In the coarsen class docstring
• On the reshaping page
• On the computations page
• On the "how do I?" page
• On the tutorial repository

Different types of material are great, but only some of these resources are linked to others. Coarsen is actually pretty well covered overall, but for other functions there might be no useful linking at all, or no examples in the docstrings.

The biggest missed opportunity here is the way all the great content on the tutorial.xarray.dev repository is not linked from anywhere on the main documentation site (I believe). To address that we could either (a) integrate the tutorial.xarray.dev material into the main site or (b) add a lot more cross-linking between the two sites.

Identifying sections that could be linked and adding links would be a great task for new contributors.

Suggestion

We relatively regularly have users asking about subclassing DataArray and Dataset, and I know of at least a few cases where people have gone through with it. However we currently explicitly discourage doing this, on the basis that basically all operations will return a bare xarray object instead of the subclassed version, it's full of trip hazards, and we have the accessor interface to point people to instead.

However, while useful, the accessors aren't enough for some users, and I think we could probably do better. If we refactored internally we might be able to make it much easier to subclass.

Example to follow in Pandas

Pandas takes an interesting approach: while they also explicitly discourage subclassing, they still try to make it easier, and show you what you need to do in order for it to work.

They ask you to override some constructor properties with your own, and allow you to define your own original properties.

Potential complications

• .construct_dataarray and DataArray.__init__ are used a lot internally to reconstruct a DataArray from dims, coords, data etc. before returning the result of a method call. We would probably need to standardise this, before allowing users to override it.

• Pandas actually has multiple constructor properties you need to override: _constructor, _constructor_sliced, and _constructor_expanddim. What's the minimum set of similar constructors we would need?

• Blocking access to attributes - we current stop people from adding their own attributes quite aggressively, so that we can have attributes as an alias for variables and attrs, we would need to either relax this or better allow users to set a list of their own _properties which they want to register, similar to pandas.

• __slots__ - I think something funky can happen if you inherit from a class that defines __slots__?

Documentation

I think if we do this we should also slightly refactor the relevant docs to make clear the distinction between 3 groups of people: - Users - People who import and use xarray at the top-level with (ideally) no particular concern as to how it works. This is who the vast majority of the documentation is for. - Developers - People who are actually improving and developing xarray upstream. This is who the Contributing to xarray page is for. - Extenders - People who want to subclass, accessorize or wrap xarray objects, in order to do something more complicated. These people are probably writing a domain-specific library which will then bring in a new set of users. There maybe aren't as many of these people, but they are really important IMO. This is implicitly who the xarray internals page is aimed at, but it would be nice to make that distinction much more clear. It might also be nice to give them a guide as to "I want to achieve X, should I use wrapping/subclassing/accessors?"

@max-sixty you had some ideas about what would need to be done for this to work?

Is it possible to deliberately drop data associated with a particular DataArray from memory?

Obviously da.close() exists, but what happens if you did for example python ds = open_dataset(file) da = ds[var] da.compute() # something that loads da into memory da.close() # is the memory freed up again now? ds.something() # what about now?

Also does calling python's built-in garbage collector (i.e. gc.collect()) do anything in this instance?

The context of this question is that I'm trying to resave some massive variables (~65GB each) that were loaded from thousands of files into just a few files for each variable. I would love to use @rabernat 's new rechunker package but I'm not sure how easily I can convert my current netCDF data to Zarr, and I'm interested in this question no matter how I end up solving the problem.

I don't currently have a particularly good understanding of file I/O and memory management in xarray, but would like to improve it. Can anyone recommend a tool I can use to answer this kind of question myself on my own machine? I suppose it would need to be able to tell me the current memory usage of specific objects, not just the total memory usage.

(@johnomotani you might be interested)

Is your feature request related to a problem?

I'm trying to think of an example that would demonstrate the "functional index" pattern discussed in https://github.com/pydata/xarray/issues/3620.

I think a 2D rotation is the simplest example of an analytically-expressible, non-trivial, domain-agnostic case where you might want to back a set of multiple coordinates with a single functional index. It's also nice because there is additional information that must be passed and stored (the angle of the rotation), but that part is very simple, and domain-agnostic. I'm proposing we make this example work and put it in the custom index docs.

I had a go at making that example (notebook here) @benbovy, but I'm confused about a couple of things:

1) How do I implement .sel in such a way that it supports indexing with slices (i.e. to crop my image) 2) How can I make this lazy? 3) Should the implementation be a "MetaIndex" (i.e. wrapping some pandas indexes)?

Describe the solution you'd like

No response

Describe alternatives you've considered

No response

Additional context

This example is inspired by @jni's use case in napari, where (IIUC) they want to do a lazy functional affine transformation from pixel to physical coordinates, where the simplest example of such a transform might be a linear shear (caused by the imaging focal plane being at an angle to the physical sample).

Is your feature request related to a problem?

Just saw this cool search thing for sphinx in a lightning talk at SciPy called Meilisearch

Cc @dcherian

Describe the solution you'd like

Read about it here

https://sphinxdocs.ansys.com/version/stable/user_guide/options.html

Describe alternatives you've considered

No response

Additional context

No response

What happened?

I released xarray version v2023.07.0 last night, but I'm not seeing changes to the documentation reflected in the https://docs.xarray.dev/en/stable/ build. (In particular the Internals section now should have an entire extra page on wrapping chunked arrays.) I can however see the newest additions on https://docs.xarray.dev/en/latest/ build. Is that how it's supposed to work?

What did you expect to happen?

No response

Minimal Complete Verifiable Example

No response

MVCE confirmation

• [ ] Minimal example — the example is as focused as reasonably possible to demonstrate the underlying issue in xarray.
• [ ] Complete example — the example is self-contained, including all data and the text of any traceback.
• [ ] Verifiable example — the example copy & pastes into an IPython prompt or Binder notebook, returning the result.
• [ ] New issue — a search of GitHub Issues suggests this is not a duplicate.

Relevant log output

No response

Anything else we need to know?

No response

Environment

Discussed in https://github.com/pydata/xarray/discussions/5283

Is your feature request related to a problem?

Since early on the project xarray has supported wrapping dask.array objects in a first-class manner. However recent work on flexible array wrapping has made it possible to wrap all sorts of array types (and with #6804 we should support wrapping any array that conforms to the array API standard).

Currently though the only way to parallelize array operations with xarray "automatically" is to use dask. (You could use xarray-beam or other options too but they don't "automatically" generate the computation for you like dask does.)

When dask is the only type of parallel framework exposing an array-like API then there is no need for flexibility, but now we have nascent projects like cubed to consider too. @tomwhite

Describe the solution you'd like

Refactor the internals so that dask is one option among many, and that any newer options can plug in in an extensible way.

In particular cubed deliberately uses the same API as dask.array, exposing: 1) the methods needed to conform to the array API standard 2) a .chunk and .compute method, which we could dispatch to 3) dask-like functions to create computation graphs including blockwise, map_blocks, and rechunk

I would like to see xarray able to wrap any array-like object which offers this set of methods / functions, and call the corresponding version of that method for the correct library (i.e. dask vs cubed) automatically.

That way users could try different parallel execution frameworks simply via a switch like python ds.chunk(**chunk_pattern, manager="dask") and see which one works best for their particular problem.

Describe alternatives you've considered

If we leave it the way it is now then xarray will not be truly flexible in this respect.

Any library can wrap (or subclass if they are really brave) xarray objects to provide parallelism but that's not the same level of flexibility.

Additional context

cubed repo

PR about making xarray able to wrap objects conforming to the new array API standard

cc @shoyer @rabernat @dcherian @keewis

What is your issue?

(Follow-up to #7019)

When you create a dask graph of xarray operations, the tasks in the graph get useful names according the name of the DataArray they operate on, or whether they represent an open_dataset call.

Currently for cubed this doesn't work, for example this graph from https://github.com/pangeo-data/distributed-array-examples/issues/2#issuecomment-1533852877:

cc @tomwhite @dcherian

There may perhaps be a small bug anyway, as DataArrays with and without coords are handled differently. Contrast:

``` da=xr.DataArray(data=np.random.randn(2,2,2,10,10),coords={'A':['a1','a2'],'B':[0,1],'C':[0,1],'X':range(10),'Y':range(10)})

p=da.sel(A='a1').plot.contour(col='B',row='C') try: p.map_dataarray(xr.plot.pcolormesh, y="B", x="C"); except Exception as e: print('An uninformative error:') print(e) An uninformative error: tuple index out of range

```

with:

``` da=xr.DataArray(data=np.random.randn(2,2,2,10,10))

p=da.sel(dim_0=0).plot.contour(col='dim_1',row='dim_2') try: p.map_dataarray(xr.plot.pcolormesh, y="dim_1", x="dim_2"); except Exception as e: print('A more informative error:') print(e) ```

``` A more informative error: x must be one of None, 'dim_3', 'dim_4'

```

Originally posted by @joshdorrington in https://github.com/pydata/xarray/discussions/7310#discussioncomment-4257643

What happened?

python da = xr.DataArray(np.arange(9), dim='x') da.pad({'x': (0, 1)}, 'constant', constant_values=np.NAN) ```

ValueError Traceback (most recent call last) Input In [12], in <cell line: 1>() ----> 1 da.pad({'x': 1}, 'constant', constant_values=np.NAN)

File ~/Documents/Work/Code/xarray/xarray/core/dataarray.py:4158, in DataArray.pad(self, pad_width, mode, stat_length, constant_values, end_values, reflect_type, pad_width_kwargs) 4000 def pad( 4001 self, 4002 pad_width: Mapping[Any, int | tuple[int, int]] | None = None, (...) 4012 pad_width_kwargs: Any, 4013 ) -> DataArray: 4014 """Pad this array along one or more dimensions. 4015 4016 .. warning:: (...) 4156 z (x) float64 nan 100.0 200.0 nan 4157 """ -> 4158 ds = self._to_temp_dataset().pad( 4159 pad_width=pad_width, 4160 mode=mode, 4161 stat_length=stat_length, 4162 constant_values=constant_values, 4163 end_values=end_values, 4164 reflect_type=reflect_type, 4165 **pad_width_kwargs, 4166 ) 4167 return self._from_temp_dataset(ds)

File ~/Documents/Work/Code/xarray/xarray/core/dataset.py:7368, in Dataset.pad(self, pad_width, mode, stat_length, constant_values, end_values, reflect_type, pad_width_kwargs) 7366 variables[name] = var 7367 elif name in self.data_vars: -> 7368 variables[name] = var.pad( 7369 pad_width=var_pad_width, 7370 mode=mode, 7371 stat_length=stat_length, 7372 constant_values=constant_values, 7373 end_values=end_values, 7374 reflect_type=reflect_type, 7375 ) 7376 else: 7377 variables[name] = var.pad( 7378 pad_width=var_pad_width, 7379 mode=coord_pad_mode, 7380 coord_pad_options, # type: ignore[arg-type] 7381 )

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:1360, in Variable.pad(self, pad_width, mode, stat_length, constant_values, end_values, reflect_type, pad_width_kwargs) 1357 if reflect_type is not None: 1358 pad_option_kwargs["reflect_type"] = reflect_type # type: ignore[assignment] -> 1360 array = np.pad( # type: ignore[call-overload] 1361 self.data.astype(dtype, copy=False), 1362 pad_width_by_index, 1363 mode=mode, 1364 pad_option_kwargs, 1365 ) 1367 return type(self)(self.dims, array)

File <array_function internals>:5, in pad(args, *kwargs)

File ~/miniconda3/envs/py39/lib/python3.9/site-packages/numpy/lib/arraypad.py:803, in pad(array, pad_width, mode, **kwargs) 801 for axis, width_pair, value_pair in zip(axes, pad_width, values): 802 roi = _view_roi(padded, original_area_slice, axis) --> 803 _set_pad_area(roi, axis, width_pair, value_pair) 805 elif mode == "empty": 806 pass # Do nothing as _pad_simple already returned the correct result

File ~/miniconda3/envs/py39/lib/python3.9/site-packages/numpy/lib/arraypad.py:147, in _set_pad_area(padded, axis, width_pair, value_pair) 130 """ 131 Set empty-padded area in given dimension. 132 (...) 144 broadcastable to the shape of arr. 145 """ 146 left_slice = _slice_at_axis(slice(None, width_pair[0]), axis) --> 147 padded[left_slice] = value_pair[0] 149 right_slice = _slice_at_axis( 150 slice(padded.shape[axis] - width_pair[1], None), axis) 151 padded[right_slice] = value_pair[1]

ValueError: cannot convert float NaN to integer ```

What did you expect to happen?

It should have successfully padded with a NaN, same as it does if you don't specify constant_values:

python In [14]: da.pad({'x': (0, 1)}, 'constant') Out[14]: <xarray.DataArray (x: 3)> array([ 0., 1., nan]) Dimensions without coordinates: x

Minimal Complete Verifiable Example

No response

Relevant log output

No response

Anything else we need to know?

No response

Environment

INSTALLED VERSIONS

commit: None python: 3.9.7 | packaged by conda-forge | (default, Sep 29 2021, 19:20:46) [GCC 9.4.0] python-bits: 64 OS: Linux OS-release: 5.11.0-7620-generic machine: x86_64 processor: x86_64 byteorder: little LC_ALL: None LANG: en_US.UTF-8 LOCALE: ('en_US', 'UTF-8') libhdf5: 1.12.1 libnetcdf: 4.8.1

xarray: 0.20.3.dev4+gdbc02d4e pandas: 1.4.0 numpy: 1.21.4 scipy: 1.7.3 netCDF4: 1.5.8 pydap: None h5netcdf: None h5py: None Nio: None zarr: 2.10.3 cftime: 1.5.1.1 nc_time_axis: None PseudoNetCDF: None rasterio: None cfgrib: None iris: None bottleneck: None dask: 2022.01.1 distributed: 2022.01.1 matplotlib: None cartopy: None seaborn: None numbagg: None fsspec: 2022.01.0 cupy: None pint: None sparse: None setuptools: 59.6.0 pip: 21.3.1 conda: 4.11.0 pytest: 6.2.5 IPython: 8.2.0 sphinx: 4.4.0

What is your issue?

xr.concat doesn't concatenate dimension coordinates along new dimensions, which leads to pretty unintuitive behavior.

Take this example (motivated by https://github.com/pydata/xarray/discussions/7532#discussioncomment-4988792) python segments = [] for i in range(2): time = np.sort(np.random.random(4)) da = xr.DataArray( np.random.randn(4,2), dims=["time", "cols"], coords=dict(time=('time', time), cols=["col1", "col2"]), ) segments.append(da) python In [86]: segments Out[86]: [<xarray.DataArray (time: 4, cols: 2)> array([[-0.61199576, -0.9012078 ], [-0.54187577, 1.30509994], [-3.53720471, 0.97607797], [ 0.2593455 , 0.95920031]]) Coordinates: * time (time) float64 0.1048 0.168 0.869 0.9432 * cols (cols) <U4 'col1' 'col2', <xarray.DataArray (time: 4, cols: 2)> array([[ 0.90266408, -0.54294821], [-1.09087103, -0.17484417], [-0.21679558, -0.57377412], [ 0.07570151, 0.27433728]]) Coordinates: * time (time) float64 0.03627 0.09754 0.2434 0.592 * cols (cols) <U4 'col1' 'col2'] ```python In [85]: xr.concat(segments, dim='new') Out[85]: <xarray.DataArray (new: 2, time: 8, cols: 2)> array([[[ nan, nan], [ nan, nan], [-0.61199576, -0.9012078 ], [-0.54187577, 1.30509994], [ nan, nan], [ nan, nan], [-3.53720471, 0.97607797], [ 0.2593455 , 0.95920031]],

   [[ 0.90266408, -0.54294821],
    [-1.09087103, -0.17484417],
    [        nan,         nan],
    [        nan,         nan],
    [-0.21679558, -0.57377412],
    [ 0.07570151,  0.27433728],
    [        nan,         nan],
    [        nan,         nan]]])

Coordinates: * time (time) float64 0.03627 0.09754 0.1048 0.168 ... 0.592 0.869 0.9432 * cols (cols) <U4 'col1' 'col2' Dimensions without coordinates: new ```

I would have expected to get a result of size {new: 2, time: 4, cols: 2}. That would be intuitive, because the default is coords='different', and that would be the result of concatenating each time coordinate (which have different values) and just propagating the cols coordinate (as they have the same values).

Instead what happened is that xr.concat treats the dimension coordinates as indexes to align, and defaults to an outer join. This auto-alignment behaviour has been discussed at length before, I'm just trying to point out another place in which its problematic.

This is kind of briefly mentioned in the concat docstring under coords='all': “all”: All coordinate variables will be concatenated, except those corresponding to other dimensions. but it's not even mentioned under coords='different'

I don't really know what I would prefer to happen with the coordinates. I guess to have created a time coordinate of size {new: 2, time: 4, cols: 2}, but then I don't know what that implies for the underlying index. @benbovy do you have any thoughts?

At the very least we should make this a lot clearer in the docs.

We should make a docs page specifically to ease the transition from pure-numpy to xarray.

A lot of new xarray users come from already using numpy as their primary data structure. We relatively often get questions about "what's the xarray equivalent of X numpy function" but we don't have a dedicated place to collect those answers, or explain key conceptual differences.

I think this deserves its own dedicated docs page, with: - [ ] High-level conceptual differences (e.g. transpose invariance) - [ ] Arguments for the benefits of using xarray over pure numpy - [ ] Table of numpy <-> xarray function equivalents (similar to the existing "How do I..." page) - [ ] Other common recommendations for numpy users (e.g. use netCDF / Zarr instead of .npz or pickle to store data on disk)

For the table I thought of a few already, but I know there will be a lot more:

• np.concatenate/np.vstack/np.hstack/np.stack → xr.concat
• np.block → xr.combine_nested
• np.apply_along_axis → xr.apply_ufunc
• np.polynomial → xr.polyfit
• np.reshape -> xr.coarsen().construct()

What happened?

Unhelpful error raised by xr.broadcast when supplied with an int.

What did you expect to happen?

The broadcast to succeed I think?

Minimal Complete Verifiable Example

```Python In [1]: import xarray as xr

In [2]: da = xr.DataArray([5, 4], dims='x')

In [3]: xr.broadcast(da, 1)

AttributeError Traceback (most recent call last) Cell In[3], line 1 ----> 1 xr.broadcast(da, 1)

File ~/miniconda3/envs/xrdev3.9/lib/python3.9/site-packages/xarray/core/alignment.py:1049, in broadcast(exclude, args) 1047 if exclude is None: 1048 exclude = set() -> 1049 args = align(args, join="outer", copy=False, exclude=exclude) 1051 dims_map, common_coords = _get_broadcast_dims_map_common_coords(args, exclude) 1052 result = [_broadcast_helper(arg, exclude, dims_map, common_coords) for arg in args]

File ~/miniconda3/envs/xrdev3.9/lib/python3.9/site-packages/xarray/core/alignment.py:772, in align(join, copy, indexes, exclude, fill_value, *objects) 576 """ 577 Given any number of Dataset and/or DataArray objects, returns new 578 objects with aligned indexes and dimension sizes. (...) 762 763 """ 764 aligner = Aligner( 765 objects, 766 join=join, (...) 770 fill_value=fill_value, 771 ) --> 772 aligner.align() 773 return aligner.results

File ~/miniconda3/envs/xrdev3.9/lib/python3.9/site-packages/xarray/core/alignment.py:556, in Aligner.align(self) 553 self.results = (obj.copy(deep=self.copy),) 554 return --> 556 self.find_matching_indexes() 557 self.find_matching_unindexed_dims() 558 self.assert_no_index_conflict()

File ~/miniconda3/envs/xrdev3.9/lib/python3.9/site-packages/xarray/core/alignment.py:262, in Aligner.find_matching_indexes(self) 259 objects_matching_indexes = [] 261 for obj in self.objects: --> 262 obj_indexes, obj_index_vars = self._normalize_indexes(obj.xindexes) 263 objects_matching_indexes.append(obj_indexes) 264 for key, idx in obj_indexes.items():

AttributeError: 'int' object has no attribute 'xindexes' ```

MVCE confirmation

• [X] Minimal example — the example is as focused as reasonably possible to demonstrate the underlying issue in xarray.
• [X] Complete example — the example is self-contained, including all data and the text of any traceback.
• [X] Verifiable example — the example copy & pastes into an IPython prompt or Binder notebook, returning the result.
• [X] New issue — a search of GitHub Issues suggests this is not a duplicate.

Relevant log output

No response

Anything else we need to know?

This clearly has something to do with a change in the flexible indexes refactor, as it complains about .xindexes not being present. @benbovy

Environment

The main branch

Is your feature request related to a problem?

The terminology docs page mostly contains explanation of available classes. It should also contain explanation of words we use to describe relationships between those classes.

For example the docstring on xr.align just says "Given any number of Dataset and/or DataArray objects, returns new objects with aligned indexes and dimension sizes.", but there is no link given to a definition of what we mean by "aligned".

Describe the solution you'd like

No response

Describe alternatives you've considered

No response

Additional context

No response

What happened?

to_zarr threw an error when I tried to overwrite part of an existing zarr store.

What did you expect to happen?

With mode w I was expecting it to overwrite part of the store with no complaints.

I expected that because that's what the docstring of to_zarr says:

mode ({"w", "w-", "a", "r+", None}, optional) – Persistence mode: “w” means create (overwrite if exists); “w-” means create (fail if exists); “a” means override existing variables (create if does not exist);

The default mode is "w", so I was expecting it to overwrite.

Minimal Complete Verifiable Example

```Python import xarray as xr import numpy as np np.random.seed(0)

ds = xr.Dataset() ds["data"] = (['x', 'y'], np.random.random((100,100))) ds.to_zarr("test.zarr") print(ds["data"].mean().compute())

returns array(0.49645889) as expected

ds = xr.open_dataset("test.zarr", engine='zarr', chunks={}) ds["data"].mean().compute() print(ds["data"].mean().compute())

still returns array(0.49645889) as expected

ds.to_zarr("test.zarr", mode="a") ```

python <xarray.DataArray 'data' ()> array(0.49645889) <xarray.DataArray 'data' ()> array(0.49645889) Traceback (most recent call last): File "/home/tom/Documents/Work/Code/experimentation/bugs/datatree_nans/mwe_xarray.py", line 16, in <module> ds.to_zarr("test.zarr") File "/home/tom/miniconda3/envs/xrdev3.9/lib/python3.9/site-packages/xarray/core/dataset.py", line 2091, in to_zarr return to_zarr( # type: ignore File "/home/tom/miniconda3/envs/xrdev3.9/lib/python3.9/site-packages/xarray/backends/api.py", line 1628, in to_zarr zstore = backends.ZarrStore.open_group( File "/home/tom/miniconda3/envs/xrdev3.9/lib/python3.9/site-packages/xarray/backends/zarr.py", line 420, in open_group zarr_group = zarr.open_group(store, **open_kwargs) File "/home/tom/miniconda3/envs/xrdev3.9/lib/python3.9/site-packages/zarr/hierarchy.py", line 1389, in open_group raise ContainsGroupError(path) zarr.errors.ContainsGroupError: path '' contains a group

MVCE confirmation

• [X] Minimal example — the example is as focused as reasonably possible to demonstrate the underlying issue in xarray.
• [X] Complete example — the example is self-contained, including all data and the text of any traceback.
• [X] Verifiable example — the example copy & pastes into an IPython prompt or Binder notebook, returning the result.
• [X] New issue — a search of GitHub Issues suggests this is not a duplicate.

Relevant log output

No response

Anything else we need to know?

I would like to know what the intended result is supposed to be here, so that I can make sure datatree behaves the same way, see https://github.com/xarray-contrib/datatree/issues/168.

Environment

Main branch of xarray, zarr v2.13.3

What happened?

ds.Coarsen.construct demotes non-dimensional coordinates to variables

What did you expect to happen?

All variables that were coordinates before the coarsen.construct stay as coordinates afterwards.

Minimal Complete Verifiable Example

```Python In [3]: da = xr.DataArray(np.arange(24), dims=["time"]) ...: da = da.assign_coords(day=365 * da) ...: ds = da.to_dataset(name="T")

In [4]: ds Out[4]: <xarray.Dataset> Dimensions: (time: 24) Coordinates: day (time) int64 0 365 730 1095 1460 1825 ... 6935 7300 7665 8030 8395 Dimensions without coordinates: time Data variables: T (time) int64 0 1 2 3 4 5 6 7 8 9 ... 14 15 16 17 18 19 20 21 22 23

In [5]: ds.coarsen(time=12).construct(time=("year", "month")) Out[5]: <xarray.Dataset> Dimensions: (year: 2, month: 12) Coordinates: day (year, month) int64 0 365 730 1095 1460 ... 7300 7665 8030 8395 Dimensions without coordinates: year, month Data variables: T (year, month) int64 0 1 2 3 4 5 6 7 8 ... 16 17 18 19 20 21 22 23 ```

MVCE confirmation

• [X] Minimal example — the example is as focused as reasonably possible to demonstrate the underlying issue in xarray.
• [X] Complete example — the example is self-contained, including all data and the text of any traceback.
• [X] Verifiable example — the example copy & pastes into an IPython prompt or Binder notebook, returning the result.
• [X] New issue — a search of GitHub Issues suggests this is not a duplicate.

Relevant log output

No response

Anything else we need to know?

No response

Environment

main

What is your issue?

I just saw this new typing feature in python 3.11, and I'm wondering whether / where we could usefully use this? The feature is parametrizing Generics with arbitrary numbers of TypeVars, which allows you to have Array types whose static typing behaviour is a function of their shape. (But we could possibly use it for a tuple of dims too...) We might use it to do things like:

• Specify that a function expects an array of a certain dimensionality
• Overload methods based on the array dimensionality (e.g. .plot for 1D vs 2D arrays)
• (If they implement Shape Arithmetic) Type hint how certain methods will change the output shape?

@headtr1ck @max-sixty any thoughts?

What is your issue?

I would like to create a PeriodicBoundaryIndex using the Explicit Indexes refactor. I want to do it first in 1D, then 2D, then maybe ND.

I'm thinking this would be useful for: 1) Geoscientists with periodic longitudes 2) Any scientists with periodic domains 3) Road-testing the refactor + how easy the documentation is to follow.

Eventually I think perhaps this index should live in xarray itself? As it's domain-agnostic, doesn't introduce extra dependencies, and could be a conceptually simple example of a custom index.

I had a first go, using the benbovy:add-set-xindex-and-drop-indexes branch, and reading the in-progress docs page. I got a bit stuck early on though.

@benbovy here's what I have so far:

```python import numpy as np import pandas as pd import xarray as xr from xarray.core.variable import Variable from xarray.core.indexes import PandasIndex, is_scalar

from typing import Union, Mapping, Any

class PeriodicBoundaryIndex(PandasIndex): """ An index representing any 1D periodic numberline.

Implementation subclasses a normal xarray PandasIndex object but intercepts indexer queries.
"""

def _periodic_subset(self, indxr: Union[int, slice, np.ndarray]) -> pd.Index:
    """Equivalent of __getitem__ for a pd.Index, but respects periodicity."""

    length = len(self)

    if isinstance(indxr, int):
        return self.index[indxr % length]
    elif isinstance(indxr, slice):
        raise NotImplementedError()
    elif isinstance(indxr, np.ndarray):
        raise NotImplementedError()
    else:
        raise TypeError

def isel(
    self, indexers: Mapping[Any, Union[int, slice, np.ndarray, Variable]]
) -> Union["PeriodicBoundaryIndex", None]:

    print("isel called")

    indxr = indexers[self.dim]
    if isinstance(indxr, Variable):
        if indxr.dims != (self.dim,):
            # can't preserve a index if result has new dimensions
            return None
        else:
            indxr = indxr.data
    if not isinstance(indxr, slice) and is_scalar(indxr):
        # scalar indexer: drop index
        return None

    subsetted_index = self._periodic_subset[indxr]
    return self._replace(subsetted_index)

```

```python airtemps = xr.tutorial.open_dataset("air_temperature")['air']

da = airtemps.drop_indexes("lon")

world = da.set_xindex("lon", index_cls=PeriodicBoundaryIndex) ```

Now selecting a value with isel inside the range works fine, giving the same result same as without my custom index. (The length of the example dataset along lon is 53.)

python world.isel(lon=45)

isel called <xarray.DataArray 'air' (time: 2920, lat: 25)> ...

But indexing with a lon value outside the range of the index data gives an IndexError, seemingly without consulting my new index object. It didn't even print "isel called" :confused: What should I have implemented that I didn't implement?

python world.isel(lon=55)

```python

IndexError Traceback (most recent call last) Input In [35], in <cell line: 1>() ----> 1 world.isel(lon=55)

File ~/Documents/Work/Code/xarray/xarray/core/dataarray.py:1297, in DataArray.isel(self, indexers, drop, missing_dims, **indexers_kwargs) 1292 return self._from_temp_dataset(ds) 1294 # Much faster algorithm for when all indexers are ints, slices, one-dimensional 1295 # lists, or zero or one-dimensional np.ndarray's -> 1297 variable = self._variable.isel(indexers, missing_dims=missing_dims) 1298 indexes, index_variables = isel_indexes(self.xindexes, indexers) 1300 coords = {}

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:1233, in Variable.isel(self, indexers, missing_dims, **indexers_kwargs) 1230 indexers = drop_dims_from_indexers(indexers, self.dims, missing_dims) 1232 key = tuple(indexers.get(dim, slice(None)) for dim in self.dims) -> 1233 return self[key]

File ~/Documents/Work/Code/xarray/xarray/core/variable.py:793, in Variable.getitem(self, key) 780 """Return a new Variable object whose contents are consistent with 781 getting the provided key from the underlying data. 782 (...) 790 array x.values directly. 791 """ 792 dims, indexer, new_order = self._broadcast_indexes(key) --> 793 data = as_indexable(self._data)[indexer] 794 if new_order: 795 data = np.moveaxis(data, range(len(new_order)), new_order)

File ~/Documents/Work/Code/xarray/xarray/core/indexing.py:657, in MemoryCachedArray.getitem(self, key) 656 def getitem(self, key): --> 657 return type(self)(_wrap_numpy_scalars(self.array[key]))

File ~/Documents/Work/Code/xarray/xarray/core/indexing.py:626, in CopyOnWriteArray.getitem(self, key) 625 def getitem(self, key): --> 626 return type(self)(_wrap_numpy_scalars(self.array[key]))

File ~/Documents/Work/Code/xarray/xarray/core/indexing.py:533, in LazilyIndexedArray.getitem(self, indexer) 531 array = LazilyVectorizedIndexedArray(self.array, self.key) 532 return array[indexer] --> 533 return type(self)(self.array, self._updated_key(indexer))

File ~/Documents/Work/Code/xarray/xarray/core/indexing.py:505, in LazilyIndexedArray._updated_key(self, new_key) 503 full_key.append(k) 504 else: --> 505 full_key.append(_index_indexer_1d(k, next(iter_new_key), size)) 506 full_key = tuple(full_key) 508 if all(isinstance(k, integer_types + (slice,)) for k in full_key):

File ~/Documents/Work/Code/xarray/xarray/core/indexing.py:278, in _index_indexer_1d(old_indexer, applied_indexer, size) 276 indexer = slice_slice(old_indexer, applied_indexer, size) 277 else: --> 278 indexer = _expand_slice(old_indexer, size)[applied_indexer] 279 else: 280 indexer = old_indexer[applied_indexer]

IndexError: index 55 is out of bounds for axis 0 with size 53 ```

I'm a big fan of sphinx-codeautolink 🙂

Originally posted by @Zac-HD in https://github.com/pydata/xarray/pull/6908#discussion_r963290657

This looks cool, lets add it!

What is your issue?

At Scipy @Carreau demo'ed a new docs engine: Papyri. (You can find the talk slides here).

In short it looks awesome, and we should use it to improve our docs!

You should watch the talk, but Papyri allows:

• bidirectional crosslinking across libraries,
• navigation,
• proper reflow of user docstrings text,
• proper reflow of inline images (when rendered to html),
• proper math rendering (both in terminal and html), and more.

There is also a jupyter-lab extension in the works.

One of the examples in the talk uses xarray docs, as papyri builds from our .rst files.

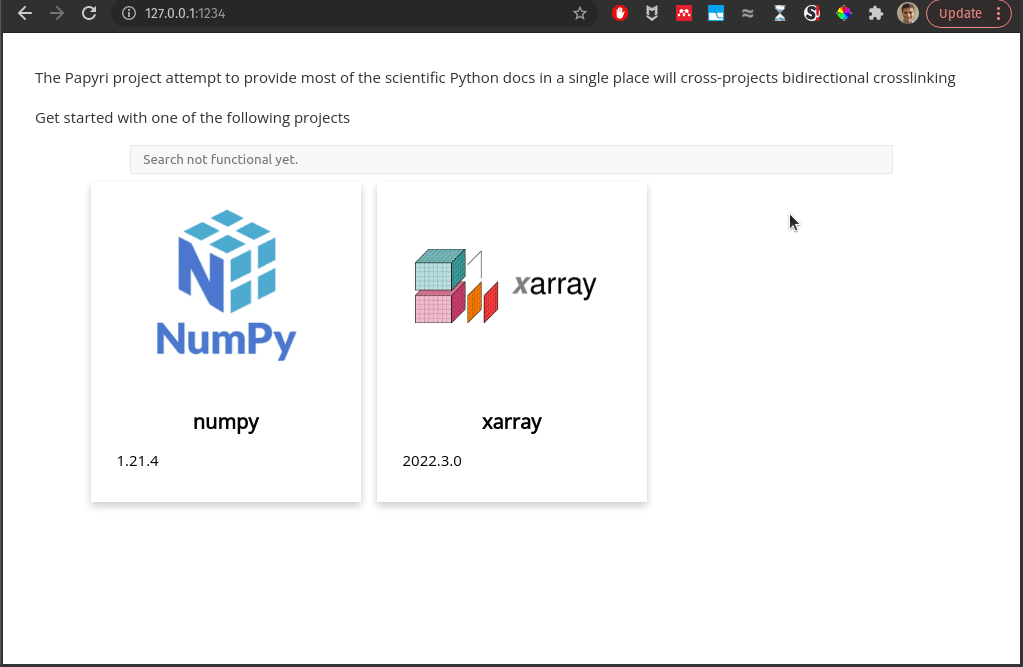

Here I have "ingested" both xarray and numpy docs, which papyri's explorer dynamically links together in both directions.

I think this is super cool, and we should think about using it. However the project is extremely early stage, and currently has many bugs, and no unified way to ship it (the example was made locally).

I encourage other xarray devs to have a look and a think about how we can use it / benefit / test it out though!

Proposal

We should expose a public set of hypothesis strategies for use in testing xarray code. It could be useful for downstream users, but also for our own internal test suite. It should live in xarray.testing.strategies. Specifically perhaps

• xarray.testing.strategies.variables
• xarray.testing.strategies.dataarrays
• xarray.testing.strategies.datasets
• (xarray.testing.strategies.datatrees ?)
• xarray.testing.strategies.indexes
• xarray.testing.strategies.chunksizes following dask.array.testing.strategies.chunks

This issue is different from #1846 because that issue describes how we could use such strategies in our own testing code, whereas this issue is for how we create general strategies that we could use in many places (including exposing publicly).

I've become interested in this as part of wanting to see #6894 happen. #6908 would effectively close this issue, but itself is just a pulled out section of all the work @keewis did in #4972.

(Also xref https://github.com/pydata/xarray/issues/2686. Also also @max-sixty didn't you have an issue somewhere about creating better and public test fixtures?)

Previous work

I was pretty surprised to see this comment by @Zac-HD in #1846

@rdturnermtl wrote a Hypothesis extension for Xarray, which is at least a nice demo of what's possible.

given that we might have just used that instead of writing new ones in #4972! (@keewis had you already seen that extension?)

We could literally just include that extension in xarray and call this issue solved...

Shrinking performance of strategies

However I was also reading about strategies that shrink yesterday and think that we should try to make some effort to come up with strategies for producing xarray objects that shrink in a performant and well-motivated manner. In particular by pooling the knowledge of the @xarray-dev core team we could try to create strategies that search for many of the edge cases that we are collectively aware of.

My understanding of that guide is that our strategies ideally should:

1) Quickly include or exclude complexity

For instance `if draw(booleans()): # then add coordinates to generated dataset`.

It might also be nice to have strategy constructors which allow passing other strategies in, so the user can choose how much complexity they want their strategy to generate. e.g. I think a signature like this should be possible

```python
from hypothesis import strategies as st

@st.composite
def dataarrays(
    data: xr.Variable | st.SearchStrategy[xr.Variable] | duckarray | st.SearchStrategy[duckarray] | None ...,
    coords: ...,
    dims: ...,
    attrs: ...,
    name: ...,
) -> st.SearchStrategy[xr.DataArray]:
    """
    Hypothesis strategy for generating arbitrary DataArray objects.

    Parameters
    ----------
    data
        Can pass an absolute value of an appropriate type (i.e. `Variable`, `np.ndarray` etc.),
        or pass a strategy which generates such types.
         Default is that the generated DataArray could contain any possible data.
    ...
    (similar flexibility for other constructor arguments)
    """
    ...
```

2) Deliberately generate known edge cases

For instance deliberately create:
  - dimension coordinates,
  - names which are Hashable but not strings,
  - multi-indexes,
  - weird dtypes,
  - NaNs,
  - duckarrays instead of `np.ndarray`,
  - inconsistent chunking between different variables,
  - (any other ideas?)

3) Be very modular internally, to help with "keeping things local"

Each sub-strategy should be in its own function, so that hypothesis' decision tree can cut branches off as soon as possible.

4) Avoid obvious inefficiencies

e.g. not .filter(...) or assume(...) if we can help it, and if we do need them then keep them in the same function that generates that data. Plus just keep all sizes small by default.

Perhaps the solutions implemented in #6894 or this hypothesis xarray extension already meet these criteria - I'm not sure. I just wanted a dedicated place to discuss building the strategies specifically, without it getting mixed in with complicated discussions about whatever we're trying to use the strategies for!

What is your issue?

A pattern I use fairly often is apply_ufunc(..., dask="allowed") calling a function wrapped with dask.array.map_blocks. This is necessary to use apply_ufunc with chunked core dimensions.

AFAIK this currently isn't discussed anywhere in the docs. A sensible place to add a recipe explaining this would be just after this section in your notebook @dcherian ?

@rabernat @jbusecke this is the pattern we used in xGCM FYI

We want to encourage people to use and extend xarray, and we already provide testing functions as public API to help with this.

One function I keep using when writing code which uses xarray is xarray.tests.test_dataset.create_test_data(). This is very useful for quickly writing tests for the same reasons that it's useful in xarray's internal tests, but it's not explicitly public API. This means that there's no guarantee it won't change/disappear, which is not ideal if you're trying to write a test suite for separate software. But so many tests in xarray rely on it that presumably it's not going to get changed.

Is there any reason why it shouldn't be public API? Is there something I should use instead?

In issuing the last 2 xarray releases, I've noticed a pattern, that goes something like this: 1) We don't have a release for 3+ months, for no particular reason. 2) Someone realises they want a release, to fix a bug or make a new feature available. 3) That person announces that they would like a release. 4) Lots of people (myself especially) suggest all sorts of unfinished issues that they think could or should go into that next release. 5) The dev team end up spending the better part of a week trying to finish up all of these miscellaneous PRs. 6) Finally it is deemed "ready" in some fairly arbitrary way. 7) The release is made manually using the "16 easy steps". 8) No-one wants to think about releasing again for another 3 months...

Frequency

I mentioned this to @rabernat and he suggested that we should be releasing much more frequently.

If we released more regularly then we wouldn't have this effect of "oh and we should try to squeeze XYZ into this release".

I think the majority of the time xarray's CI is passing, and even when it's not it's only 1 tiny fix away from passing. That means that we in theory could release the main branch at practically any time, and it would be perfectly stable for users. (I personally exclusively use the most recent version of main.)

I also don't know of any downside to releasing very regularly (other than that someone has to issue the release).

How about we try to release after each of the bi-weekly dev calls? We could make it an official part of the call to end by saying: - "any reason why we can't release right now?" - "no, CI is passing" - "okay [person] volunteers to click the button right after this meeting"

That would immediately increase our release frequency by up to 6x.

Automation

Can we automate any more steps of our release process? As far as I can tell the only steps that really need human intervention are - "write the release summary" and - "check that all the automated stuff went as expected".

We could potentially still automate - "add new section to the whats-new.rst", - "update the stable branch", - "update the active version of the docs" (maybe?), and - "email various mailing lists".

@pydata/xarray thoughts?

We should do another release soon. The last one was v0.19 on July 23rd, so it's been 3 months.

(In particular I personally want to get some small pint compatibility fixes released such as https://github.com/pydata/xarray/pull/5571 and https://github.com/pydata/xarray/pull/5886, so that the code in this blog post advertising pint-xarray integration all works.)

There's been plenty of changes since then, and there are more we could merge quite quickly. It's a breaking release because we changed some dependencies, so should be called v0.20.0.

@benbovy how does the ongoing index refactor stuff affect this release? Do we need to wait so it can all be announced? Can we release with merged index refactor stuff just silently sitting there?

Small additions we could merge, feel free to suggest more @pydata/xarray : - https://github.com/pydata/xarray/pull/5834 - https://github.com/pydata/xarray/pull/5662 - #5233 - #5900 - #5365 - #5845 - #5904 - #5911 - #5905 - #5847 - #5916

Basically the title, but what I'm referring to is this:

```python In [2]: da = xr.DataArray([[0, 1], [2, 3]], name='foo').chunk(1)

In [3]: ds = da.to_dataset()

In [4]: da.chunks Out[4]: ((1, 1), (1, 1))

In [5]: ds.chunks Out[5]: Frozen({'dim_0': (1, 1), 'dim_1': (1, 1)}) ```

Why does DataArray.chunks return a tuple and Dataset.chunks return a frozen dictionary?

This seems a bit silly, for a few reasons:

1) it means that some perfectly reasonable code might fail unnecessarily if passed a DataArray instead of a Dataset or vice versa, such as

```python
def is_core_dim_chunked(obj, core_dim):
    return len(obj.chunks[core_dim]) > 1
```
which will work as intended for a dataset but raises a `TypeError` for a dataarray.

2) it breaks the pattern we use for .sizes, where

```python
In [14]: da.sizes
Out[14]: Frozen({'dim_0': 2, 'dim_1': 2})

In [15]: ds.sizes
Out[15]: Frozen({'dim_0': 2, 'dim_1': 2})
```

3) if you want the chunks as a tuple they are always accessible via da.data.chunks, which is a more sensible place to look to find the chunks without dimension names.

4) It's an undocumented difference, as the docstrings for ds.chunks and da.chunks both only say

`"""Block dimensions for this dataset’s data or None if it’s not a dask array."""`

which doesn't tell me anything about the return type, or warn me that the return types are different.

EDIT: In fact `DataArray.chunk` doesn't even appear to be listed on the API docs page at all.

In our codebase this difference is mostly washed out by us using ._to_temp_dataset() all the time, and also by the way that the .chunk() method accepts both the tuple and dict form, so both of these invariants hold (but in different ways):

ds == ds.chunk(ds.chunks) da == da.chunk(da.chunks)

I'm not sure whether making this consistent is worth the effort of a significant breaking change though :confused:

(Sort of related to https://github.com/pydata/xarray/issues/2103)

Is your feature request related to a problem? Please describe. Sometimes you want to check that data values are present in another array, but only up to a certain tolerance.

Describe the solution you'd like da.isin(test_values, tolerance=1e-6), where the tolerance argument is optional.

Not sure what the implementation should be but there are two vectorized suggestions here.

Describe alternatives you've considered Different to np.isclose because isin compares all values against a flattened array, whereas isclose compares individual values elementwise.

Additional context @jbusecke requested it.

Proposal: hold a high-level inter-library meeting to sort out roadblocks in the duck-array wrapping efforts.

Whilst trying to get dask, pint and xarray all working nicely together, I couldn't help but notice there are important issues which conclude with a shared sentiment that "we just need to make a decision as to what wraps what" but since then have had essentially no codified consensus, and hence no progress for the past year. Multiply-nested duck-array wrapping is complicated and involves a lot of separate libraries (as this graph of potential wrappings shows), but could be an amazingly powerful feature!

I suggest that as asynchronous discussion hasn't moved this forward, we should instead hold a (hopefully one-off) meeting to make these high-level design decisions.

I'm happy to arrange the meeting, but for this to work we ideally need attendees who understand the issues from the perspective of each of the main libraries involved - some suggestions: - xarray (@shoyer and @keewis) - dask (@mrocklin?) - pint (@jthielen) - cupy? (@jacobtomlinson?) - sparse? (@crusaderky?) - pytorch?? (@rgommers??)

Possible Agenda (please suggest additions!):

• Which libraries should wrap which other libraries
• Repo/NEP/etc. for standardizing wrapping order and other future decisions
• Outstanding issues to tackle first

Background reading

• Basic idea of the numpy dispatch mechanism explained in a blog post
• @jthielen 's excellent overview comment, with links to relevant NEP's
• Pint's technical commentary on array type support

Some related issues (there are many more - please add)

• https://github.com/pydata/xarray/issues/5559
• https://github.com/pydata/xarray/issues/3950
• dask/dask#5329
• dask/dask#6637
• dask/dask#6636
• dask/dask#6635

With pint-xarray you can create a chunked, unit-aware xarray object, but calling a calculation method and then computing doesn't appear to behave as hoped.

```python da = xr.DataArray([1,2,3], attrs={'units': 'metres'})

chunked = da.chunk(1).pint.quantify() ```

python print(chunked.compute()) <xarray.DataArray (dim_0: 3)> <Quantity([1 2 3], 'meter')> Dimensions without coordinates: dim_0 So far this is fine, but if we try to take a mean before computing we get

python print(chunked.mean().compute()) <xarray.DataArray ()> <Quantity(dask.array<true_divide, shape=(), dtype=float64, chunksize=(), chunktype=numpy.ndarray>, 'meter')> /home/tegn500/miniconda3/envs/py38-mamba/lib/python3.8/site-packages/dask/array/core.py:3139: UserWarning: Passing an object to dask.array.from_array which is already a Dask collection. This can lead to unexpected behavior. warnings.warn( This is not correct: as well as the UserWarning, the return value of compute is a dask array, meaning we need to compute a second time to actually get the answer: python print(chunked.mean().compute().compute()) <xarray.DataArray ()> <Quantity(2.0, 'meter')> /home/tegn500/miniconda3/envs/py38-mamba/lib/python3.8/site-packages/dask/array/core.py:3139: UserWarning: Passing an object to dask.array.from_array which is already a Dask collection. This can lead to unexpected behavior. warnings.warn(

If we try chunking the other way (chunked = da.pint.quantify().pint.chunk(1)) then we get all the same results.

xref https://github.com/xarray-contrib/pint-xarray/issues/116 and https://github.com/pydata/xarray/pull/4972 @keewis

Yesterday in the dev call we discussed the need for another release. Not sure if this should be a bugfix release (i.e. v0.18.3) or a full release (i.e. v0.19). Last release (v0.18.2) was 19th May, with v0.18.0 on 6th May.

@pydata/xarray

Bug fixes:

• 5581 and the fix #5359 (this one needs to be released soon really)

• 5528

• Probably various smaller ones

New features:

• 4696

• 5514

• 5476

• 5464

• 5445

Internal: - master -> main #5520 - #5506

Nice to merge first?:

• [x] #5568 and #5561
• [ ] #5571
• [x] #5586
• [ ] #5493
• [x] #4909
• [ ] #5580
• [ ] #4863
• [ ] #5501

I noticed that with multiple conflicting dimension coords then concat can give pretty weird/counterintuitive results, at least compared to what the documentation suggests they should give:

```python

Create two datasets with conflicting coordinates

objs = [Dataset({'x': [0], 'y': [1]}), Dataset({'y': [0], 'x': [1]})]

[<xarray.Dataset> Dimensions: (x: 1, y: 1) Coordinates: * x (x) int64 0 * y (y) int64 1 Data variables: empty, <xarray.Dataset> Dimensions: (x: 1, y: 1) Coordinates: * y (y) int64 0 * x (x) int64 1 Data variables: empty] ```

```python

Try to join along only 'x',

coords='minimal' so concatenate "Only coordinates in which the dimension already appears"

concat(objs, dim='x', coords='minimal')

<xarray.Dataset> Dimensions: (x: 2, y: 2) Coordinates: * y (y) int64 0 1 * x (x) int64 0 1 Data variables: empty

It's joined along x and y!

```

Based on my reading of the docstring for concat, I would have expected this to not attempt to concatenate y, because coords='minimal', and instead to throw an error because 'y' is a "non-concatenated variable" whose values are not the same across datasets.

Now let's try to get concat to broadcast 'y' across 'x':

```python

Try to join along only 'x' by setting coords='different'

concat(objs, dim='x', coords='different') ```

Now as "Data variables which are not equal (ignoring attributes) across all datasets are also concatenated" then I would have expected 'y' to be concatenated across 'x', i.e. to add the 'x' dimension to the 'y' coord, i.e:

python <xarray.Dataset> Dimensions: (x: 2, y: 1) Coordinates: * y (y, x) int64 1 0 * x (x) int64 0 1 Data variables: *empty* But that's not what we get!: <xarray.Dataset> Dimensions: (x: 2, y: 2) Coordinates: * y (y) int64 0 1 * x (x) int64 0 1 Data variables: *empty*

Same again but without dimension coords

If we create the same sort of objects but the variables are data vars not coords, then everything behaves exactly as expected:

```python objs2 = [Dataset({'a': ('x', [0]), 'b': ('y', [1])}), Dataset({'a': ('x', [1]), 'b': ('y', [0])})]

[<xarray.Dataset> Dimensions: (x: 1, y: 1) Dimensions without coordinates: x, y Data variables: a (x) int64 0 b (y) int64 1, <xarray.Dataset> Dimensions: (x: 1, y: 1) Dimensions without coordinates: x, y Data variables: a (x) int64 1 b (y) int64 0]

concat(objs2, dim='x', data_vars='minimal')

ValueError: variable b not equal across datasets

concat(objs2, dim='x', data_vars='different')

<xarray.Dataset> Dimensions: (x: 2, y: 1) Dimensions without coordinates: x, y Data variables: a (x) int64 0 1 b (x, y) int64 1 0 ```

Also if you do the same again but with coordinates which are not dimension coords, i.e:

```python objs3 = [Dataset(coords={'a': ('x', [0]), 'b': ('y', [1])}), Dataset(coords={'a': ('x', [1]), 'b': ('y', [0])})]

[<xarray.Dataset> Dimensions: (x: 1, y: 1) Coordinates: a (x) int64 0 b (y) int64 1 Dimensions without coordinates: x, y Data variables: empty, <xarray.Dataset> Dimensions: (x: 1, y: 1) Coordinates: a (x) int64 1 b (y) int64 0 Dimensions without coordinates: x, y Data variables: empty] ``` then this again gives the expected concatenation behaviour.

So this implies that the compatibility checks that are being done on the data vars are not being done on the coords, but only if they are dimension coordinates!

Either this is not the desired behaviour or the concat docstring needs to be a lot clearer. If we agree that this is not the desired behaviour then I will have a look inside concat to work out why it's happening.

EDIT: Presumably this has something to do with the ToDo in the code for concat: # TODO: support concatenating scalar coordinates even if the concatenated dimension already exists...

Whilst trying to fix #5559 I noticed that xarray.testing.assert_equal (and xarray.testing.assert_equal) don't behave well with wrapped duck-typed arrays.

Firstly, they can give unhelpful AssertionError messages:

```python In [5]: a = np.array([1,2,3])

In [6]: q = pint.Quantity([1,2,3], units='m')

In [7]: da_np = xr.DataArray(a, dims='x')

In [8]: da_p = xr.DataArray(q, dims='x')

In [9]: da_np Out[9]: <xarray.DataArray (x: 3)> array([1, 2, 3]) Dimensions without coordinates: x

In [10]: da_p Out[10]: <xarray.DataArray (x: 3)> <Quantity([1 2 3], 'meter')> Dimensions without coordinates: x

In [11]: from xarray.testing import assert_equal

In [12]: assert_equal(da_np, da_p) /home/tegn500/miniconda3/envs/py38-mamba/lib/python3.8/site-packages/xarray/core/duck_array_ops.py:265: UnitStrippedWarning: The unit of the quantity is stripped when downcasting to ndarray. flag_array = (arr1 == arr2) | (isnull(arr1) & isnull(arr2)) /home/tegn500/miniconda3/envs/py38-mamba/lib/python3.8/site-packages/xarray/core/duck_array_ops.py:265: DeprecationWarning: elementwise comparison failed; this will raise an error in the future. flag_array = (arr1 == arr2) | (isnull(arr1) & isnull(arr2)) /home/tegn500/miniconda3/envs/py38-mamba/lib/python3.8/site-packages/xarray/core/duck_array_ops.py:265: UnitStrippedWarning: The unit of the quantity is stripped when downcasting to ndarray. flag_array = (arr1 == arr2) | (isnull(arr1) & isnull(arr2)) /home/tegn500/miniconda3/envs/py38-mamba/lib/python3.8/site-packages/xarray/core/duck_array_ops.py:265: DeprecationWarning: elementwise comparison failed; this will raise an error in the future. flag_array = (arr1 == arr2) | (isnull(arr1) & isnull(arr2)) /home/tegn500/miniconda3/envs/py38-mamba/lib/python3.8/site-packages/numpy/core/_asarray.py:102: UnitStrippedWarning: The unit of the quantity is stripped when downcasting to ndarray. return array(a, dtype, copy=False, order=order)

AssertionError Traceback (most recent call last) <ipython-input-12-33b16d6b79ed> in <module> ----> 1 assert_equal(da_np, da_p)

[... skipping hidden 1 frame]

~/miniconda3/envs/py38-mamba/lib/python3.8/site-packages/xarray/testing.py in assert_equal(a, b) 79 assert type(a) == type(b) 80 if isinstance(a, (Variable, DataArray)): ---> 81 assert a.equals(b), formatting.diff_array_repr(a, b, "equals") 82 elif isinstance(a, Dataset): 83 assert a.equals(b), formatting.diff_dataset_repr(a, b, "equals")

AssertionError: Left and right DataArray objects are not equal

Differing values: L array([1, 2, 3]) R array([1, 2, 3]) `` These are different, but not because the array values are different. At the moment.valuesis converting the wrapped array type by stripping the units too - it might be better to check the type of the wrapped array first, then use.valuesto compare. Or could we even do duck-typed testing by delegating viaexpected.data.equals(actual.data)? (EDIT: I don't think a.equals()method exists in the numpy API, but you could do the equivalent ofassert all(expected.data == actual.data)`

Secondly, given that we coerce before comparison, I think it's possible that assert_equal could say two different wrapped duck-type arrays are equal when they are not, just because np.asarray() coerces them to the same values.

EDIT2: Looks like there is some discussion here

As of python 3.9, python dictionaries now support being merged via python c = a | b and updated via python c = a |= b see PEP 584.

xarray.Dataset is dict-like, so it would make sense to support the same syntax for merging. The way to achieve that is by adding new dunder methods to xarray.Dataset, something like

```python def or(self, other): if not isinstance(other, xr.Dataset): return NotImplemented new = xr.merge(self, other) return new

def ror(self, other): if not isinstance(other, xr.Dataset): return NotImplemented new = xr.merge(self, other) return new

def ior(self, other): self.merge(other) return self ```

The distinction between the intent of these different operators is whether a new object is returned or the original object is updated.

This would allow things like (ds1 | ds2).to_netcdf()

(This feature doesn't require python 3.9, it merely echoes a feature that is only available in 3.9+)

When I try to run xarray's test suite locally with pytest I've suddenly started getting this weird error:

``` (xarray-dev) tegn500@fusion192:~/Documents/Work/Code/xarray$ pytest xarray/tests/test_backends.py ==================================================================================== test session starts ===================================================================================== platform linux -- Python 3.9.2, pytest-6.2.3, py-1.10.0, pluggy-0.13.1 rootdir: /home/tegn500/Documents/Work/Code/xarray, configfile: setup.cfg collected 0 items / 1 error

=========================================================================================== ERRORS =========================================================================================== __________ ERROR collecting xarray/tests/test_backends.py __________ ../../../../anaconda3/envs/xarray-dev/lib/python3.9/importlib/init.py:127: in import_module return _bootstrap._gcd_import(name[level:], package, level) <frozen importlib._bootstrap>:1030: in _gcd_import ??? <frozen importlib._bootstrap>:1007: in _find_and_load ??? <frozen importlib._bootstrap>:972: in _find_and_load_unlocked ??? <frozen importlib._bootstrap>:228: in _call_with_frames_removed ??? <frozen importlib._bootstrap>:1030: in _gcd_import ??? <frozen importlib._bootstrap>:1007: in _find_and_load ??? <frozen importlib._bootstrap>:986: in _find_and_load_unlocked ??? <frozen importlib._bootstrap>:680: in _load_unlocked ??? <frozen importlib._bootstrap_external>:790: in exec_module ??? <frozen importlib._bootstrap>:228: in _call_with_frames_removed ??? xarray/tests/init.py:84: in <module> has_pint_0_15, requires_pint_0_15 = _importorskip("pint", minversion="0.15") xarray/tests/init.py:46: in _importorskip if LooseVersion(mod.version) < LooseVersion(minversion): E AttributeError: module 'pint' has no attribute 'version' ================================================================================== short test summary info =================================================================================== ERROR xarray/tests/test_backends.py - AttributeError: module 'pint' has no attribute 'version' !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! Interrupted: 1 error during collection !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! ====================================================================================== 1 error in 0.88s ====================================================================================== ```

I'm not sure whether this is my fault or a problem with xarray somehow. @keewis have you seen this happen before? This is with a fresh conda environment, running locally on my laptop, and on python 3.9.2. Pint isn't even in this environment. I can force it to proceed with the tests by also catching the attribute error, i.e.

python def _importorskip(modname, minversion=None): try: mod = importlib.import_module(modname) has = True if minversion is not None: if LooseVersion(mod.__version__) < LooseVersion(minversion): raise ImportError("Minimum version not satisfied") except (ImportError, AttributeError): has = False

but I obviously shouldn't need to do that. Any ideas?

Environment:

Conda Environment:

Xarray should have a general curve-fitting function as part of its main API.

Motivation

Yesterday I wanted to fit a simple decaying exponential function to the data in a DataArray and realised there currently isn't an immediate way to do this in xarray. You have to either pull out the .values (losing the power of dask), or use apply_ufunc (complicated).

This is an incredibly common, domain-agnostic task, so although I don't think we should support various kinds of unusual optimisation procedures (which could always go in an extension package instead), I think a basic fitting method is within scope for the main library. There are SO questions asking how to achieve this.

We already have .polyfit and polyval anyway, which are more specific. (@AndrewWilliams3142 and @aulemahal I expect you will have thoughts on how implement this generally.)

Proposed syntax

I want something like this to work:

```python def exponential_decay(xdata, A=10, L=5): return A*np.exp(-xdata/L)

returns a dataset containing the optimised values of each parameter

fitted_params = da.fit(exponential_decay)

fitted_line = exponential_decay(da.x, A=fitted_params['A'], L=fitted_params['L'])

Compare

da.plot(ax) fitted_line.plot(ax) ```

It would also be nice to be able to fit in multiple dimensions. That means both for example fitting a 2D function to 2D data:

```python def hat(xdata, ydata, h=2, r0=1): r = xdata2 + ydata2 return h*np.exp(-r/r0)

fitted_params = da.fit(hat)

fitted_hat = hat(da.x, da.y, h=fitted_params['h'], r0=fitted_params['r0']) ```

but also repeatedly fitting a 1D function to 2D data:

```python

da now has a y dimension too

fitted_params = da.fit(exponential_decay, fit_along=['x'])

As fitted_params now has y-dependence, broadcasting means fitted_lines does too

fitted_lines = exponential_decay(da.x, A=fitted_params.A, L=fitted_params.L) `` The latter would be useful for fitting the same curve to multiple model runs, but means we need some kind offit_alongordim` argument, which would default to all dims.

So the method docstring would end up like ```python def fit(self, f, fit_along=None, skipna=None, full=False, cov=False): """ Fits the function f to the DataArray.

Expects the function f to have a signature like
`result = f(*coords, **params)`
for example
`result_da = f(da.xcoord, da.ycoord, da.zcoord, A=5, B=None)`
The names of the `**params` kwargs will be used to name the output variables.

Returns
-------
fit_results - A single dataset which contains the variables (for each parameter in the fitting function):
`param1`
    The optimised fit coefficients for parameter one.
`param1_residuals`
    The residuals of the fit for parameter one.
...
"""

```

Questions

1) Should it wrap scipy.optimise.curve_fit, or reimplement it?

Wrapping it is simpler, but as it just calls `least_squares` [under the hood](https://github.com/scipy/scipy/blob/v1.5.2/scipy/optimize/minpack.py#L532-L834) then reimplementing it would mean we could use the dask-powered version of `least_squares` (like [`da.polyfit does`](https://github.com/pydata/xarray/blob/9058114f70d07ef04654d1d60718442d0555b84b/xarray/core/dataset.py#L5987)).

2) What form should we expect the curve-defining function to come in?

`scipy.optimize.curve_fit` expects the curve to act as `ydata = f(xdata, *params) + eps`, but in xarray then `xdata` could be one or multiple coords or dims, not necessarily a single array. Might it work to require a signature like `result_da = f(da.xcoord, da.ycoord, da.zcoord, ..., **params)`? Then the `.fit` method would be work out how many coords to pass to `f` based on the dimension of the `da` and the `fit_along` argument. But then the order of coord arguments in the signature of `f` would matter, which doesn't seem very xarray-like.

3) Is it okay to inspect parameters of the curve-defining function?

If we tell the user the curve-defining function has to have a signature like `da = func(*coords, **params)`, then we could read the names of the parameters by inspecting the function kwargs. Is that a good idea or might it end up being unreliable? Is the `inspect` standard library module the right thing to use for that? This could also be used to provide default guesses for the fitting parameters.

This is just a minor gripe but I think it should be fixed.

The API syntax is inconsistent: python ds.differentiate(coord='x') da.differentiate(coord='x') ds.integrate(coord='x') da.integrate(dim='x') # why dim?? It should definitely be coord - IMO it doesn't make sense to integrate or differentiate over a dim because a dim by definition has no information about the distance between grid points. I think because the distinction between dims and coords is one of the things that new users have to learn about, we should be strict to not confuse up the meanings in the documentation/API.

The discussion on the original PR seems to agree, so I think this was just an small oversight.

The only question is whether it requires a deprecation cycle?

xarray.plot.pcolormesh() fails when you pass the matplotlib.pyplot.pcolormesh() keyword argument shading='gouraud' to it.

Code Sample, a copy-pastable example if possible

```python import matplotlib.pyplot as plt import numpy as np import xarray as xr

lon, lat = np.meshgrid(np.linspace(-20, 20, 5), np.linspace(0, 30, 4)) lon += lat/10 lat += lon/10

da = xr.DataArray(np.arange(20).reshape(4, 5), dims=['y', 'x'], coords = {'lat': (('y', 'x'), lat), 'lon': (('y', 'x'), lon)})

da.plot.pcolormesh('lon', 'lat', shading='gouraud') plt.show() ```

Problem description

This gives an error:

Traceback (most recent call last): File "mwe.py", line 17, in <module> da.plot.pcolormesh('lon', 'lat', shading='gouraud') File "/home/tegn500/Documents/Work/Code/xarray/xarray/plot/plot.py", line 721, in plotmethod return newplotfunc(**allargs) File "/home/tegn500/Documents/Work/Code/xarray/xarray/plot/plot.py", line 662, in newplotfunc **kwargs) File "/home/tegn500/Documents/Work/Code/xarray/xarray/plot/plot.py", line 864, in pcolormesh primitive = ax.pcolormesh(x, y, z, **kwargs) File "/home/tegn500/anaconda3/envs/py36/lib/python3.6/site-packages/matplotlib/__init__.py", line 1805, in inner return func(ax, *args, **kwargs) File "/home/tegn500/anaconda3/envs/py36/lib/python3.6/site-packages/matplotlib/axes/_axes.py", line 5971, in pcolormesh X, Y, C = self._pcolorargs('pcolormesh', *args, allmatch=allmatch) File "/home/tegn500/anaconda3/envs/py36/lib/python3.6/site-packages/matplotlib/axes/_axes.py", line 5559, in _pcolorargs C.shape, Nx, Ny, funcname)) TypeError: Dimensions of C (4, 5) are incompatible with X (6) and/or Y (5); see help(pcolormesh)

Expected Output

This should give almost the same image as in the documentation, just with smoother shading:

It'd be awesome if one could animate the plots xarray creates using matplotlib just by specifying the dimension over which to animate the plot.

This would allow for rapid visualisation of time-evolving data and could potentially be very powerful (imagine a grid of faceted 2d plots, all evolving together over time). I know that there are already some libraries which can create animated plots of xarray data (e.g. Holoviews), but I think that it's within xarray's scope (#2030) to add another dimension to its default matplotlib-style plotting capabilities.

How?

I saw this new package for making it easier to animate matplotlib plots using the funcanimation module: animatplot. It essentially works by wrapping matplotlib commands like plt.imshow() to instead return "blocks". These blocks can then be animated by feeding them into an animation class. An introductory script to plot line data can be found here, but basically has the form

```python import animatplot as amp import matplotlib.pyplot as plt

X, Y = load_data_somehow block = amp.blocks.Line(X, Y) anim = amp.Animation([block])

anim.save_gif("animated_line") plt.show() ```

which creates a basic gif like this:

I think that it might be possible to integrate this kind of animation-plotting tool by adding an optional dimension argument to xarray's plotting methods, which if given causes the function to call the wrapped animatplot plotting command instead of the bare matplotlib one. It would then return the corresponding "block" ready to be animated. Using the resulting code might only require a few lines to create an impressive visualisation:

```python turb2d = xr.load_dataset("turbulent_fluid_data.nc")

block = turb2d["density"].plot.imshow(animate_over='time') anim = Animation([block])

anim.save_gif("fluid_density.gif") plt.show() ```

What would need changing?

If we take the da.plot.imshow() example, then the way I'm imagining this would be done is to add the optional argument animate_over to the plot_2d decorator, and use it to choose between returning the matplotlib artist (as it does currently) or the "block". It would also mean altering the logic inside plot_2d and imshow to account for the fact you would be calling this on a 3D dataarray instead of a 2D one.

I wanted to ask about this before delving into the code too much or submitting a pull request, in case there is some problem with the idea. What do you think?

I am interested in adding the ability to plot surface plots of 2D xarray data using matplotlib's 3D plotting function plot_surface().

This would be nice because a surface in 3D is much more useful for showing certain features of 2D data then color plots are. For example an outlier would appear as an obvious spike rather than just a single bright point as it would when using plot.imshow(). I'm not suggesting adding full 3D plotting capability, just the ability to visualise 2D data as a surface in 3D.

The code would end up allowing you to just call xr.Dataarray.plot.surface() to create something like this example from here (code here):

Obviously xarray would be used to automatically set the axes labels and title and so on.

As far as I can tell it wouldn't be too difficult to do, it would just be implemented as another 2D plotting method the same way as the Dataarray.plot.imshow(), Dataarray.plot.contour() etc methods currently are. It would require the imports python import matplotlib.pyplot as plt from mpl_toolkits.mplot3d import Axes3D but these would only need to be imported if this type of plot was chosen.

I would be interested in trying to add this myself, but I've never contributed to an open-source project before. Is this a reasonable thing for me to try? Can anyone see any immediate difficulties with this? Would I just need to have a go and then submit a pull request?

Reading about PEP472, which would have allowed indexing with keyword arguments like python da[x=10] made me wonder: why don't we use __call__ to get the same effect but just with curved brackets instead of square ones? i.e. python da(x=10) We don't currently use __call__ on DataArray or Dataset for anything else.

I presume there is some good reason why this design decision was taken, but I'm just wondering what it is.

(Also has the ship permanently sailed on PEP472 now?)

Problem description

apply_ufunc with dask='parallelized' appears to be trying to act on an empty numpy array when the computation is specified, but before .compute() is called. In other words, a ufunc which just prints the shape of its argument will print (0,0) then print the correct shape once .compute() is called.

Minimum working example

```python import numpy as np import xarray as xr

def example_ufunc(x): print(x.shape) return np.mean(x, axis=-1)

def new_mean(da, dim): result = xr.apply_ufunc(example_ufunc, da, input_core_dims=[[dim]], dask='parallelized', output_dtypes=[da.dtype]) return result

shape = {'t': 2, 'x':3} data = xr.DataArray(data=np.random.rand(*shape.values()), dims=shape.keys()) unchunked = data chunked = data.chunk(shape)

actual = new_mean(chunked, dim='x') # raises the warning print(actual)

print(actual.compute()) # does the computation correctly ```

Result

(0, 0) /home/tnichol/anaconda3/envs/py36/lib/python3.6/site-packages/numpy/core/fromnumeric.py:3118: RuntimeWarning: Mean of empty slice. out=out, **kwargs) <xarray.DataArray (t: 2)> dask.array<shape=(2,), dtype=float64, chunksize=(2,)> Dimensions without coordinates: t (2, 3) <xarray.DataArray (t: 2)> array([0.147205, 0.402913]) Dimensions without coordinates: t

Expected result

Same thing without the (0,0) or the numpy warning.

Output of xr.show_versions()

(my xarray is up-to-date with master)

While it's possible to merge a dataset and a dataarray object using the top-level merge() function, if you try the same thing with the ds.merge() method it fails.

```python import xarray as xr

ds = xr.Dataset({'a': 0}) da = xr.DataArray(1, name='b')

expected = xr.merge([ds, da]) # works fine print(expected)

ds.merge(da) # fails ```

Output: ``` <xarray.Dataset> Dimensions: () Data variables: a int64 0 b int64 1

Traceback (most recent call last): File "mwe.py", line 6, in <module> actual = ds.merge(da) File "/home/tegn500/Documents/Work/Code/xarray/xarray/core/dataset.py", line 3591, in merge fill_value=fill_value, File "/home/tegn500/Documents/Work/Code/xarray/xarray/core/merge.py", line 835, in dataset_merge_method objs, compat, join, priority_arg=priority_arg, fill_value=fill_value File "/home/tegn500/Documents/Work/Code/xarray/xarray/core/merge.py", line 548, in merge_core coerced = coerce_pandas_values(objects) File "/home/tegn500/Documents/Work/Code/xarray/xarray/core/merge.py", line 394, in coerce_pandas_values for k, v in obj.items(): File "/home/tegn500/Documents/Work/Code/xarray/xarray/core/common.py", line 233, in getattr "{!r} object has no attribute {!r}".format(type(self).name, name) AttributeError: 'DataArray' object has no attribute 'items' ```

MCVE Code Sample

```python import xarray as xr import numpy as np

x_coord = xr.DataArray(data=[0.1, 0.2], dims=['x']) t_coord = xr.DataArray(data=[10, 20], dims=['t'])

da = xr.DataArray(data=np.array([[0, 1], [5, 9]]), dims=['x', 't'], coords={'x': x_coord, 'time': t_coord}) print(da)

da.transpose('time', 'x') Output: <xarray.DataArray (x: 2, t: 2)> array([[0, 1], [5, 9]]) Coordinates: * x (x) float64 0.1 0.2 time (t) int64 10 20

Traceback (most recent call last): File "mwe.py", line 22, in <module> da.transpose('time', 'x') File "/home/tegn500/Documents/Work/Code/xarray/xarray/core/dataarray.py", line 1877, in transpose "permuted array dimensions (%s)" % (dims, tuple(self.dims)) ValueError: arguments to transpose (('time', 'x')) must be permuted array dimensions (('x', 't')) ```

As 'time' is a coordinate with only one dimension, this is an unambiguous operation that I want to perform. However, because .transpose() currently only accepts dimensions, this fails with that error.

This causes bug in other parts of the code - for example I found this by trying to plot this type of dataarray: python da.plot(x='time', hue='x') which gives the same error.

(You can get a similar error also with da.plot(y='time', hue='x').)

If the code which explicitly checks that the arguments to transpose are dims and not just coordinate dimensions is removed, then both of these examples work as expected.

I would like to generalise the transpose function to also accept dimension coordinates, is there any reason not to do this?

Code Sample

```python

Create 4 datasets containing sections of contiguous (x,y) data

for i, x in enumerate([1, 3]): for j, y in enumerate([10, 40]): ds = xr.Dataset({'foo': (('x', 'y'), np.ones((2, 3)))}, coords={'x': [x, x+1], 'y': [y, y+10, y+20]})

    ds.to_netcdf('ds.' + str(i) + str(j) + '.nc')

Try to open them all in one go

ds_read = xr.open_mfdataset('ds.*.nc') print(ds_read) ```

Problem description

Currently xr.open_mfdataset will detect a single common dimension and concatenate DataSets along that dimension. However a common use case is a set of NetCDF files which have two or more common dimensions that need to be concatenated along simultaneously (for example collecting the output of any large-scale simulation which parallelizes in more than one dimension simultaneously). For the behaviour of xr.open_mfdataset to be n-dimensional it should automatically recognise and concatenate along all common dimensions.

Expected Output

<xarray.Dataset> Dimensions: (x: 4, y: 6) Coordinates: * x (x) int64 1 2 3 4 * y (y) int64 10 20 30 40 50 60 Data variables: foo (x, y) float64 dask.array<shape=(4, 6), chunksize=(2, 3)>

Current output of xr.open_mfdataset()

<xarray.Dataset> Dimensions: (x: 4, y: 12) Coordinates: * x (x) int64 1 2 3 4 * y (y) int64 10 20 30 40 50 60 10 20 30 40 50 60 Data variables: foo (x, y) float64 dask.array<shape=(4, 12), chunksize=(4, 3)>

Somehow a rogue debugging print statement managed to sneak through to master in #2616!

Line 121 of combine.py https://github.com/pydata/xarray/blob/e2c2264833ce7e861bbb930be44356e1510e13c3/xarray/core/combine.py#L121 should be deleted.

@shoyer @dcherian

DataArray.reduce() fails if you try to reduce using a function which doesn't accept any axis arguments.

```python import numpy as np from xarray import DataArray

da = DataArray(np.array([[1, 3, 3], [2, 1, 5]]))

def total_sum(data): return np.sum(data.flatten())

sum = da.reduce(total_sum) print(sum) ```

This should print a dataarray with just the number 15 in it, but instead it throws the error Traceback (most recent call last): File "mwe.py", line 9, in <module> sum = da.reduce(total_sum) File "/home/tegn500/Documents/Work/Code/xarray/xarray/core/dataarray.py", line 1605, in reduce var = self.variable.reduce(func, dim, axis, keep_attrs, **kwargs) File "/home/tegn500/Documents/Work/Code/xarray/xarray/core/variable.py", line 1365, in reduce axis=axis, **kwargs) TypeError: total_sum() got an unexpected keyword argument 'axis'

This contradicts what the docstring of .reduce() says: axis: int or sequence of int, optional Axis(es) over which to repeatedly apply func. Only one of the ‘dim’ and ‘axis’ arguments can be supplied. If neither are supplied, then the reduction is calculated over the flattened array (by calling f(x) without an axis argument).

The problem is that in variable.py an axis=None kwarg is always passed to func, even if no axis argument is given by the user in reduce.

When I try to plot the values in a 1D DataArray against the values in one of its coordinates, it does not behave at all as expected:

```python import numpy as np import matplotlib.pyplot as plt from xarray import DataArray

current = DataArray(name='current', data=np.array([5, 8, 14, 22, 30]), dims=['time'], coords={'time': (['time'], np.array([0.1, 0.2, 0.3, 0.4, 0.5])), 'voltage': (['time'], np.array([100, 200, 300, 400, 500]))})

print(current)

Try to plot current against voltage

current.plot.line(x='voltage') plt.show() ``` Output:

<xarray.DataArray 'current' (time: 5)> array([ 5, 8, 14, 22, 30]) Coordinates: * time (time) float64 0.1 0.2 0.3 0.4 0.5 voltage (time) int64 100 200 300 400 500

Problem description

Not only is 'voltage' not on the x axis, but 'current' isn't on the y axis either!

Expected Output

Based on the documentation (and common sense) I would have expected it to plot voltage on the x axis and current on the y axis.

(using a branch of xarray which is up-to-date with master)

Hi,

I'm now regularly using xarray (& dask) for organising and analysing the output of the simulation code I use (BOUT++) and it's very helpful, thank you!.

However my current approach is quite clunky at dealing the extra information and functionality that's specific to the simulation code I'm using, and I have questions about what the recommended way to extend the xarray Dataset class is. This seems like a general enough problem that I thought I would make an issue for it.

Desired

What I ideally want to do is extend the xarray.Dataset class to accommodate extra attributes and methods, while retaining as much xarray functionality as possible, but avoiding reimplementing any of the API. This might not be possible, but ideally I want to make a BoutDataset class which contains extra attributes to hold information about the run which doesn't naturally fit into the xarray data model, extra methods to perform analysis/plotting which only users of this code would require, but also be able to use xarray-specific methods and top-level functions:

```python bd = BoutDataset('/path/to/data')

ds = bd.data # access the wrapped xarray dataset extra_data = bd.extra_data # access the BOUT-specific data

bd.isel(time=-1) # use xarray dataset methods

bd2 = BoutDataset('/path/to/other/data') concatenated_bd = xr.concat([bd, bd2]) # apply top-level xarray functions to the data

bd.plot_tokamak() # methods implementing bout-specific functionality ```

Problems with my current approach

I have read the documentation about extending xarray, and the issue threads about subclassing Datasets (#706) and accessors (#1080), but I wanted to check that what I'm doing is the recommended approach.

Right now I'm trying to do something like

```python @xr.register_dataset_accessor('bout') class BoutDataset: def init(self, path): self.data = collect_data(path) # collect all my numerical data from output files self.extra_data = read_extra_data(path) # collect extra data about the simulation

def plot_tokamak():
    plot_in_bout_specific_way(self.data, self.extra_data)

```

which works in the sense that I can do

```python bd = BoutDataset('/path/to/data')

ds = bd.bout.data # access the wrapped xarray dataset extra_data = bd.bout.extra_data # access the BOUT-specific data bd.bout.plot_tokamak() # methods implementing bout-specific functionality ```

but not so well with

```python bd.isel(time=-1) # AttributeError: 'BoutDataset' object has no attribute 'isel' bd.bout.data.isel(time=-1) # have to do this instead, but this returns an xr.Dataset not a BoutDataset

concatenated_bd = xr.concat([bd1, bd2]) # TypeError: can only concatenate xarray Dataset and DataArray objects, got <class 'BoutDataset'> concatenated_ds = xr.concat([bd1.bout.data, bd2.bout.data]) # again have to do this instead, which again returns an xr.Dataset not a BoutDataset ```

If I have to reimplement the APl for methods like .isel() and top-level functions like concat(), then why should I not just subclass xr.Dataset?

There aren't very many top-level xarray functions so reimplementing them would be okay, but there are loads of Dataset methods. However I think I know how I want my BoutDataset class to behave when an xr.Dataset method is called on it: I want it to implement that method on the underlying dataset and return the full BoutDatset with extra data and attributes still attached.

Is it possible to do something like: "if calling an xr.Dataset method on an instance of BoutDataset, call the corresponding method on the wrapped dataset and return a BoutDataset that has the extra BOUT-specific data propagated through"?

Thanks in advance, apologies if this is either impossible or relatively trivial, I just thought other xarray users might have the same questions.

While writing some unit tests to check I had wrapped np.gradient correctly with xr.apply_ufunc, I came unstuck because my results were equivalent except for transposed dimensions. It took me a while to realise that xarray.testing.asset_equal considers two DataArrays equal only if their dimensions are in the same order, because intuitively that shouldn't matter in the context of xarray's data model.

A simple example to demonstrate what I mean: ```python

Create two functionally-equivalent dataarrays

data = np.random.randn(4, 3) da1 = xr.DataArray(data, dims=('x', 'y')) da2 = xr.DataArray(data.T, dims=('y', 'x'))

This test will fail

xarray.tests.assert_equal(da1, da2) This test fails, with output E AssertionError: <xarray.DataArray (x: 4, y: 3)> E array([[ 0.761038, 0.121675, 0.443863], E [ 0.333674, 1.494079, -0.205158], E [ 0.313068, -0.854096, -2.55299 ], E [ 0.653619, 0.864436, -0.742165]]) E Coordinates: E * x (x) int64 5 7 9 11 E * y (y) int64 1 4 6 E <xarray.DataArray (y: 3, x: 4)> E array([[ 0.761038, 0.333674, 0.313068, 0.653619], E [ 0.121675, 1.494079, -0.854096, 0.864436], E [ 0.443863, -0.205158, -2.55299 , -0.742165]]) E Coordinates: E * x (x) int64 5 7 9 11 E * y (y) int64 1 4 6 ``` even though these two DataArrays are functionally-equivalent for all xarray operations you could perform with them.

It would make certain types of unit tests simpler and clearer to have a function like python xarray.tests.assert_equivalent(da1, da2) which would return true if one DataArray can be formed from the other by transposition.

I would have thought that a test that does this would just transpose one into the shape of the other before comparison?
